Video and Audio |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1/4/6/8/9/16 |
DECODING |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps：
10-ch@1080P
• 30fps:
2-ch@8MP、4-ch@5MP、5-ch@4MP、6-ch@3MP |
Record Management |
| Record Mode | • Manual Recording
• Scheduling Recording
• Motion Detection Recording |
| Playback Mode | • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback |
| Backup Mode | • Regular Backup
• Video Clip Backup |
| Playback Function | • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off |
NETWORK |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability | ONVIF Profile S, CGI |

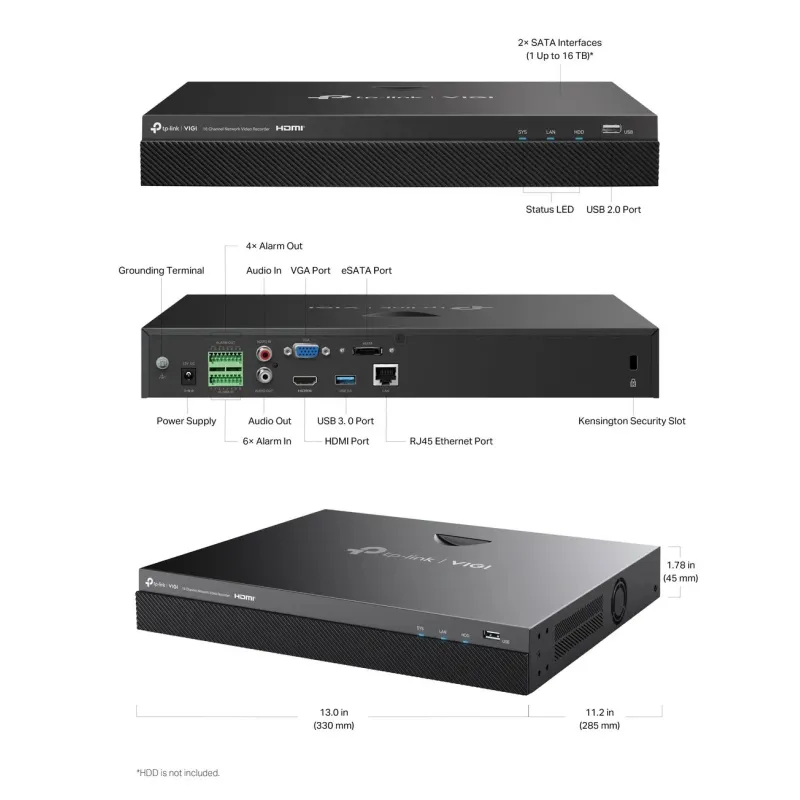

| External Interface |
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 6/4 |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1* |
| HDMI | 1 |
| VGA | 1 |
HARD DISK |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
Alarm |
| General Alarm | • Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Note: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera. |
GENERAL |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |

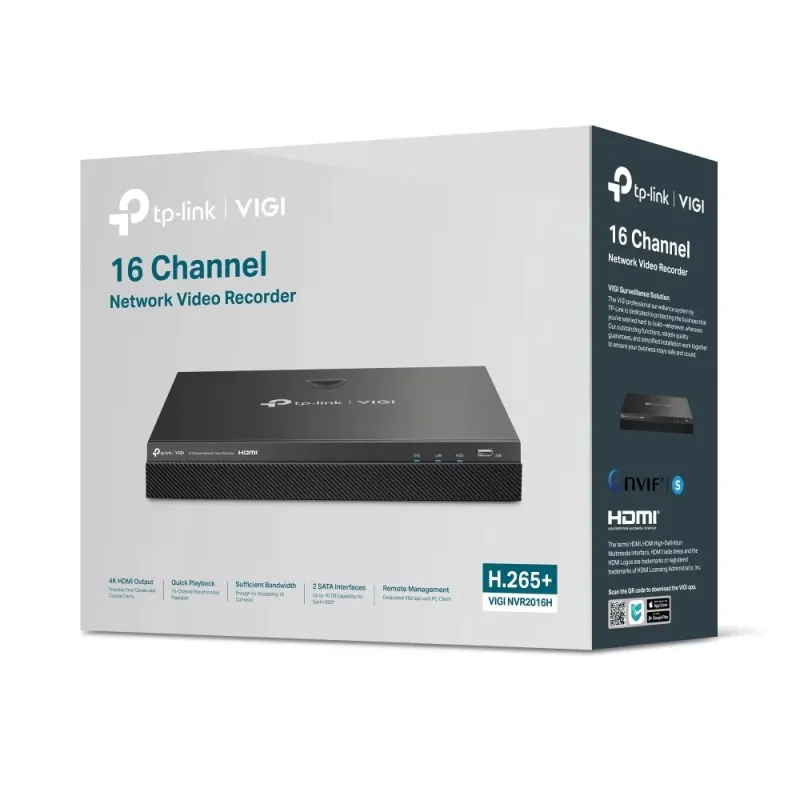

| Package Content | • VIGI Network Video Recorder
• Power Adapter
• HDD Power Cable
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C
• Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm) |
| Net Weight | 2.0 Kg# |
| Gross Weight | 3.3 Kg# |
| Power Supply | 12V DC/3.3A |
| Max. Power Consumption | • 7.475 W (Without Disk)
• 28.635 W (With Disk) |
| Certifications | CE, NTRA, Triman, BSMI, VCCI, FCC, HDMI, ONVIF |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
