InSight S655I TP-Link VIGI 5MP IR Fisheye Network Camera กล้อง IP-Camera แบบ Fisheye ความละเอียด 5MP มุมมองภาพ 360 องศา บันทึก Video H.265+ รองรับการบันทึกลงบน NVR, Memory Card สูงสุด 512GB รองรับ POE
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
คู่มือการใช้งานเชื่อมต่อกล้องกับเครื่องบันทึก NVR (ไทย)
วิธีการติดตั้ง TP-Link VIGI App บน Smartphone
Insight S665I Product Specification | |
Overview | TP-Link VIGI Insight S665I 5MP IR Fisheye Network Camera กล้อง IP-Camera แบบ Fisheye ความละเอียด 5MP มุมมองภาพครอบคลุม 360 องศา บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB รองรับ POE |
CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.44 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° |
| Lens Mount | M12*P0.5 |
| DORI Distance | Detect: 28.8 m (94 ft) Observe:12 m (39 ft) Recognize: 5.7 m (19 ft) Identify: 2.8 m (9 ft) |
Fisheye Display | |
| Installation | Ceiling Mount; Wall Mount; Pendant Mount§ |
| Display Mode | On VIGI VMS: • Ceiling Mount: Fisheye, AR Dewarp, 180 Panorama, 360 Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ • Wall Mount: Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ On VIGI App: • Ceiling Mount: Fisheye, 180 Panorama, 360 Panorama, Fisheye+3PTZ, 4PTZ, Cylinder, AR Dewarp • Wall Mount: Fisheye, 360 Panorama Unwrap, Fisheye+3PTZ, 4PTZ, 2PTZ, AR Dewarp |
Angle Adjustment (Manual) | |
| Range | N/A |
ILLUMINATOR | |
| IR LED | • Quantity: 4 • Range: 10 m • Wavelength: 850 nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
| Max. Resolution | 2560x1920 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1920, 2256x1696, 2048x1536, 1280x960 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640x480, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
Image | |
| Image Settings | • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, 802.1x |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Abnormal Sound Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • Email Alarm • Upload Capture to FTP |
INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL | |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Metal |
| Net Weight | • 0.44 Kg ( without Mounting Accessories) • 0.48 Kg ( with Mounting Accessories) |
| Power Supply | • 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12.14W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |

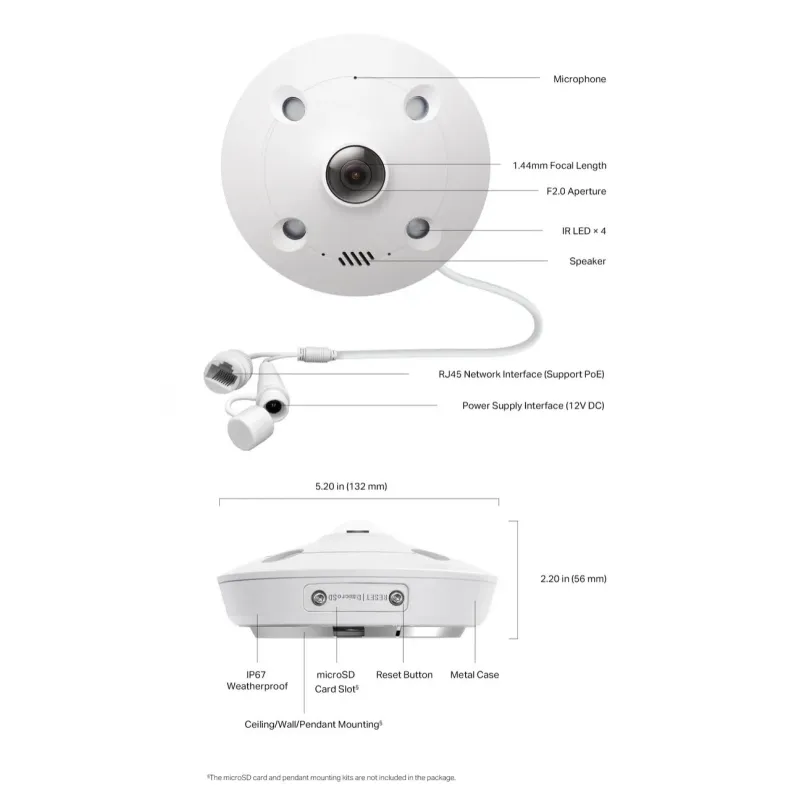

| Product Dimensions (L x W x H) | 5.2 × 5.2 × 2.2 in (132 × 132 × 56 mm) |
| Certifications | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
