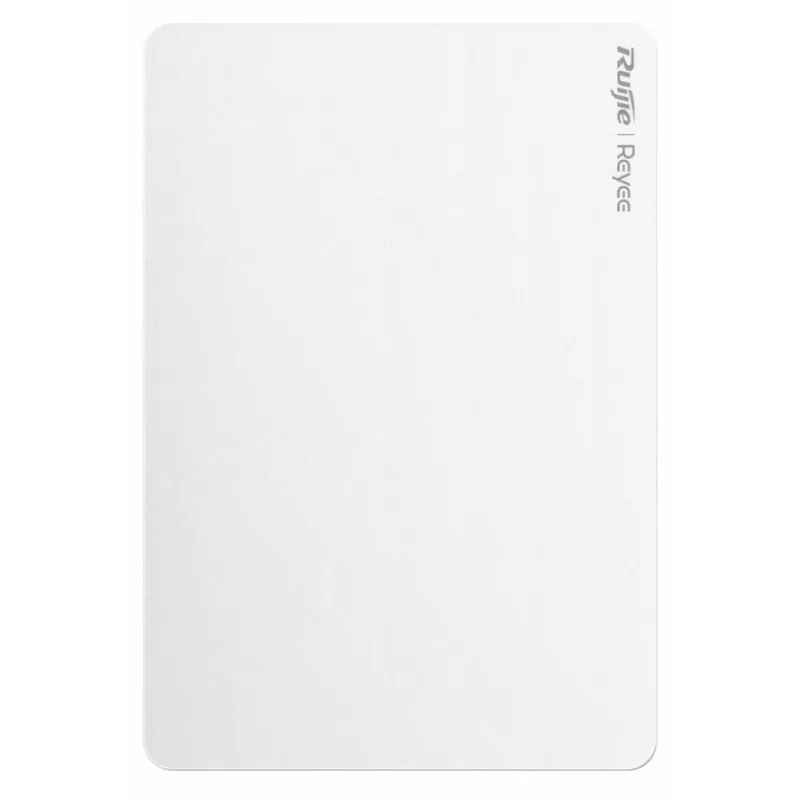

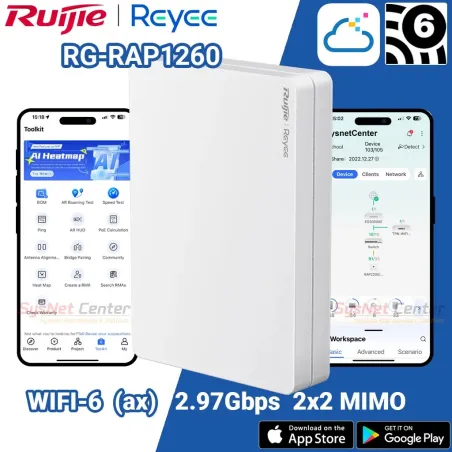

RG-RAP1260 Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point

RG-RAP1260 Product Specification

Overview

Reyee RG-RAP1260 Dual-Band Gigabit Wall Plate Access Poin มาตรฐาน WIFI6 AX3000 5 Port Lan Gigabit

รองรับการ Managed แบบ Stanalone, Free Cloud Control, Hardware Control

Hardware specifications

Wi-Fi Standards

802.11a/n/ac/ax802.11b/g/n/ax

MIMO

2.4 GHz, 2x2, MU-MIMO5 GHz, 2x2, MU-MIMO

Max. Data Rate

2.4 GHz: 574 Mbps5 GHz: 2402 Mbps

Number of Antennas

Antenna Type

Built-in omnidirectional antennas

Antenna Gain

2.4 GHz: 3 dBi 5 GHz: 5 dBi

Transmit Power

EIRP: 26 dBm (2.4 GHz) 26 dBm (5 GHz) (country-specific restrictions apply)
Myamar: 2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470
MHz~5850 MHz ≤ 25 dBm Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470 MHz~5725MHz ≤ 25 dBm 5725 MHz~5850 MHz ≤ 30 dBm

Fixed Ports

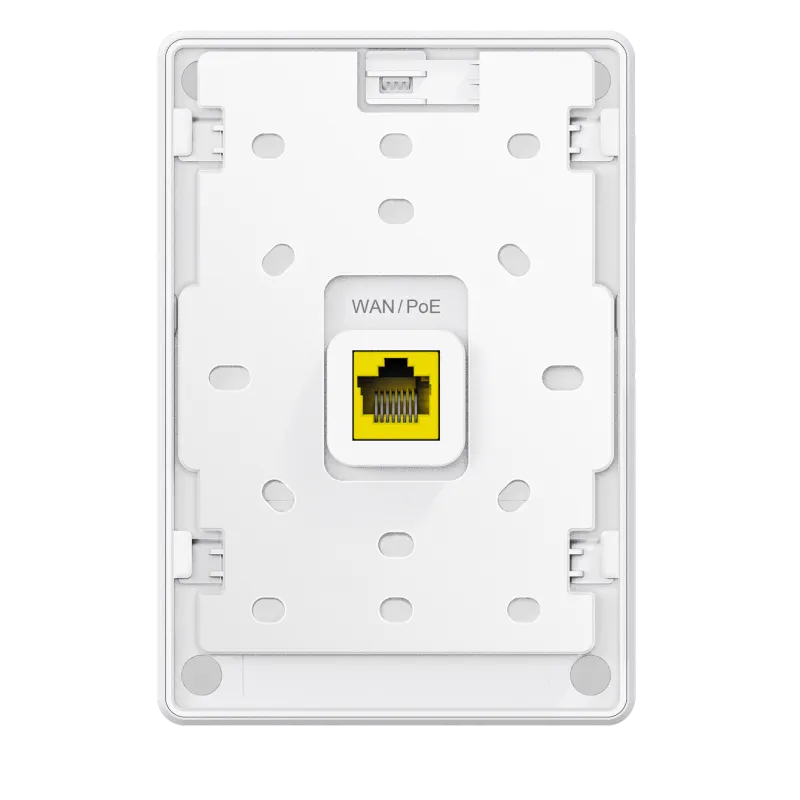

1 x 10/100/1000Base-T Ethernet uplink port
4 x 10/100/1000Base-T Ethernet
downlink ports 1 x Reset hole

Max. Number of Concurrent STAs

Recommended Number of Concurrent STAs

Max. Number of SSIDs

Supported Frequency Bands

802.11b/g/n/ax: 2.400 GHz to 2.483 GHz802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz,5.725 GHz to 5.850 GHzNote: Country-specific restrictions apply.

Software Features

Power Adjustment

Channel Bandwidth

2.4 GHz: Auto/20 MHz/40 MHz5 GHz: Auto/20 MHz/40 MHz/80 MHz/160 MHz

Roaming

Layer 2 roamingLayer 3 roaming802.11k/v roaming

OFDMA

Beamforming

Wi-Fi Multimedia (WMM))

Radar Signal Detection and Frequency Hopping (DFS)

WLAN Security

Security Mode

WAP-PSK, WAP2-PSK, and WPA-WAP2-PSK

Blocklist and Allowlist

Enhanced User Experience

Wi-Fi Optimization

Removing Low-RSSI STAs

Syslog Recording Why Users Lose Connection

Auto Channel and Power Adjustment on Cloud

RSSI Threshold for STA Access

Load Balancing

Networks

Network Access Mode

PPPoE ClientDHCP ClientStatic IP

Avoidance of WAN IP Address Conflicts

VLAN

Port-based VLANVLAN over 802.1QTV projection screen

DHCP Server

System

Management

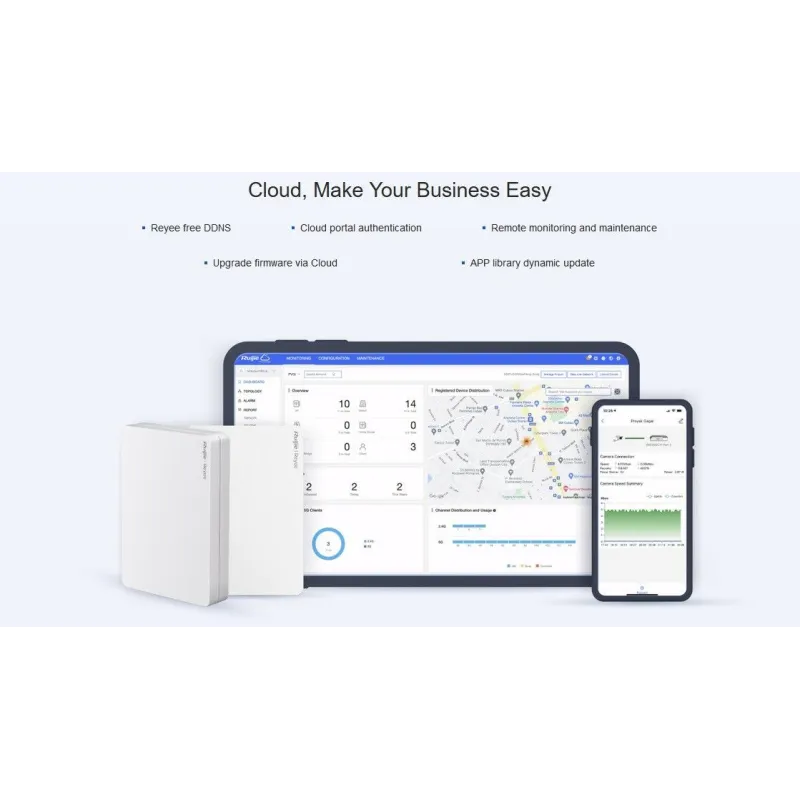

Cloud ManagementApp Management

App Upgrade

App Restart

Scheduled Restart

Default Access/Password

10.44.77.253 (No password required by default.)

Upgrade

Local UpgradeOnline Upgrade

Backup

Factory Reset

Diagnostics

Network Check

Hardware Features

LED

1 x System status LED

Reset Hole

1 x Reset hole

Dimensions (W x D x H)

124 mm x 86 mm x 24 mm (4.88 in. x 3.89 in. x 0.94 in.)

Weight

0.5 kg (without the mounting bracket)

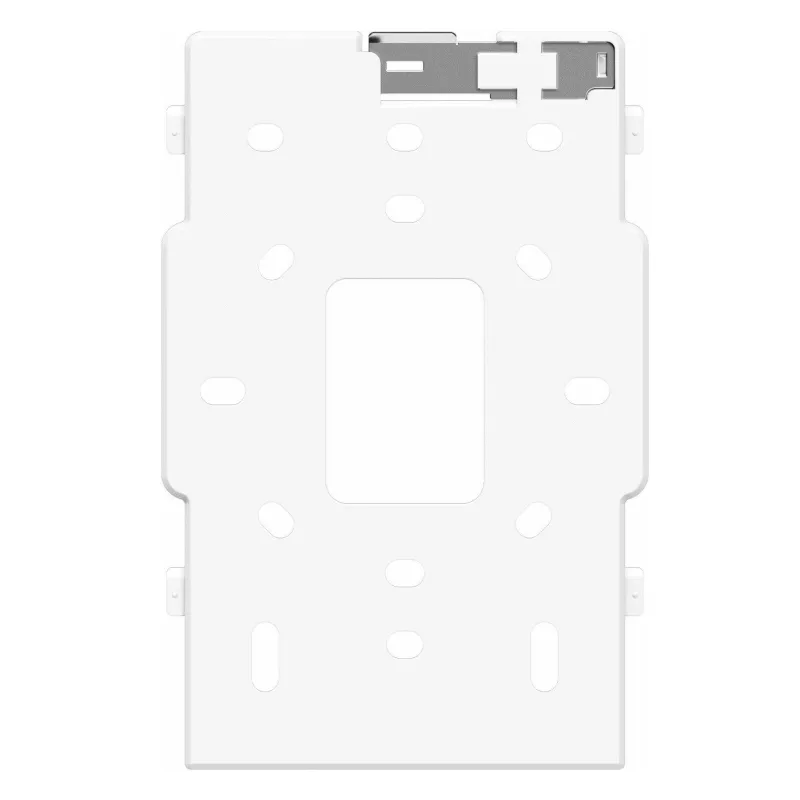

Mounting Bracket Dimensions (W x D x H)

122 mm x 80 mm x 3.8 mm (4.80 in. x 3.15 in. x 0.15 in.)

Mounting Hole Pattern

Hole pattern 83.5 mm x 60 mm (3.29 in. x 2.36 in.)

Mounting Hole Diameter

2.25 mm (0.09 in.)

Power Supply

IEEE 802.3af/at PoE

Max. Power Consumption

12 W

Environment

Operating Temperature

0°C to 40°C (32°F to 104°F )

Storage Temperature

-40°C to +70°C (-40°F to +158°F )

Ingress Protection Rating (IP Rating)

IP41

MTBF

400,000 hours

รับประกัน

3 ปี
