Product Specification
|
|
Overview
|

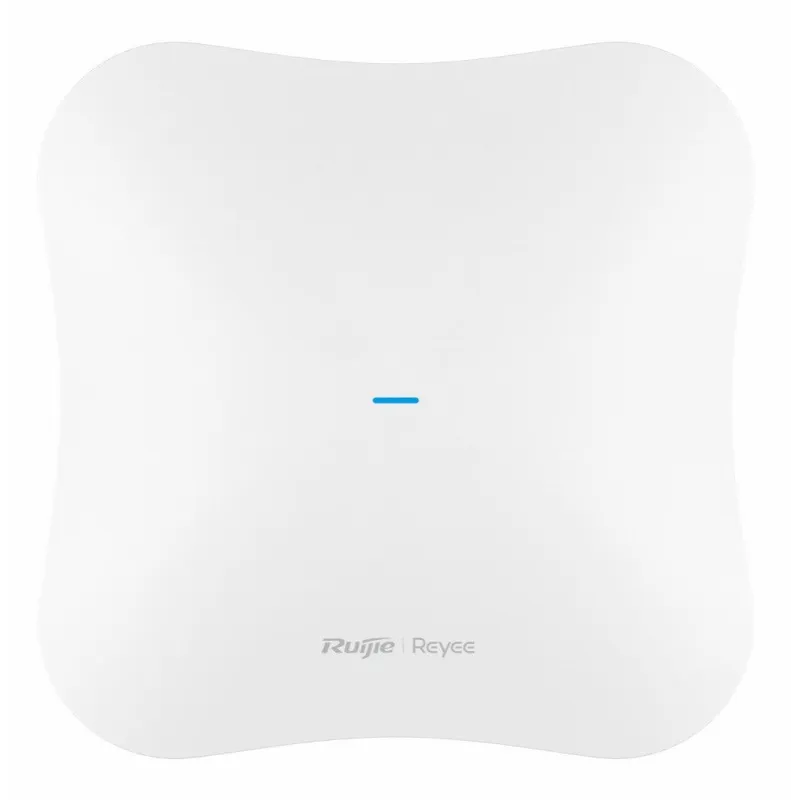

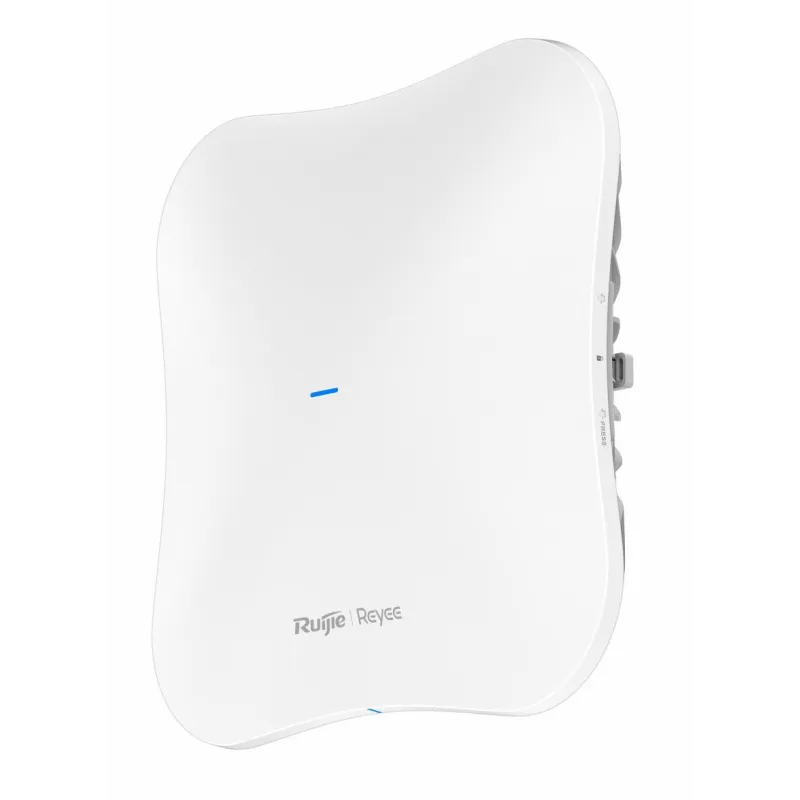

Reyee by Ruijie RG-RAP73HD Wireless Access Point มาตรฐาน WIFI-7(be) MIMO 4x4 Tri-Radio 2.4/5/6GHz ความเร็วสูงสุด 11Gbps
Port Lan Multi-Gig 1/2.5/5/10Gbps
Port SFP+ 10Gbps
รองรับ POE 802.3bt (60W)
รองรับ MESH WIFI, Manage ผ่าน Ruijie Cloud, Standalone
|
|
Wi-Fi Standards
|
Wi-Fi7(IEEE 802.11be)
|
|
MIMO
|
2.4 GHz,4x4 MIMO
5 GHz,4x4 MIMO
6 GHz,4x4 MIMO
|
|
Max. Wi-Fi Speed
|
2.4 GHz: Up to 1378 Mbps
5 GHz: Up to 5760 Mbps
6 GHz: Up to 11520 Mbps
|
|
Antenna
|
14 (2.4G 4*4) 5G 4*5 (6G 4*5)
|
|
Antenna Type
|
Planar inverted-F (PIFA) antennas Antenna gain:
2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 6 dBi
|
|
Antenna Gain
|
CE EIRP: 2.4 GHz to 2.4835 GHz: 20 dBm
5.150 GHz to 5.350 GHz: 23 dBm
5.470 GHz to 5.725 GHz: 30 dBm
5.925 GHz to 6.425 GHz: 23 dBm
Note: The transmit power is country-specific.
|
|

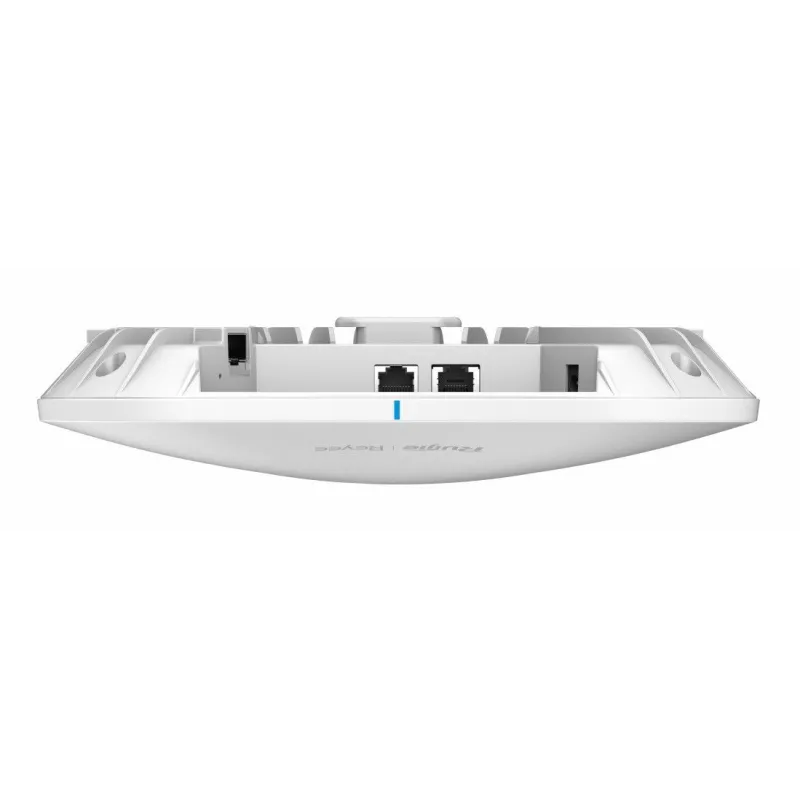

Service Port
|
1 x 100/1000/2.5G/5G/10GBase-T Ethernet port,
1 x 10/100/1000Base-T Ethernet port
1 x 10GBase-X SFP port
(The optical module needs to be purchased separately.)
Note: The access point itself does not transmit optical signals. An optical module must be installed on the access point to convert optical signals into electrical signals.
|
|
Max. Transmit Power
|
CE EIRP: 2.4 GHz to 2.4835 GHz: 20 dBm
5.150 GHz to 5.350 GHz: 23 dBm
5.470 GHz to 5.725 GHz: 30 dBm
5.925 GHz to 6.425 GHz: 23 dBm
Note: The transmit power is country-specific.
|
|
Max. Clients
|
512(2.4G+5G)+512(6G)=1500
|
|
Recommended Clients
|
250+
(The above is laboratory data, and does not constitute a guaranteed specification. Specific scenarios may evaluate different data during use.)
|
|
Max. SSIDs
|
8 |
|
Basic Feature
|
|
Recommended Wi-Fi Coverage Radius
|
2.4GHz: 40 meters
5GHz: 70 meters
6GHz: 70 meters
The Wi-Fi coverage is related to the installation environment of the access point.
|
|
Max. Wi-Fi Coverage Radius
|
Max:100 meters
|
|
Software Feature
|
|
Power Adjustment
|
Configurable in increments of 1 dBm
High(100%), Medium(75%), Low(50%), Lower(25%) Support
|
|
Roaming
|
Layer 2 roaming
Layer 3 roaming
|
|
OFDMA Subcarrier, OFDMA, Multiple Access
|
Support
|
|
Target wake time (TWT)*
|
Support
|
|
WMM
|
Support
|
|
Radar Signal Detection and Frequency Hopping (DFS)
|
Support
|
|
WLAN Security
|
|
Wi-Fi Password
|
16 |
|
Security Mode
|
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK; WPA3-SAE/WPA2-PSK
|
|
Static Whitelist
|
Support
|
|
Static Blacklist
|
Support
|
|
Enhanced User Experience
|
|
Wi-Fi Optimization
|
Support
|
|
STA Limit
|
SSID-based STA limit , radio-based STA limit
|
|
Removing Low-RSSI STAs
|
Support
|
|
Adjusting Sending Rate of Beacon and Probe Response
|
Support
|
|
Auto Channel and Power Adjustment on Cloud
|
Support
|
|
Software Features
|
|
RSSI Threshold for STA Access
|
Support
|
|
Networks
|
|
Network Access Mode
|
PPPoE Client
DHCP Client
Static IP
|
|
Avoidance of WAN IP
Address Conflicts
|
Support
|
|
VLAN
|
Port-based VLAN
802.1Q VLAN
|
|
System
|
|
Management
|
Cloud Management
APP Management
APP Upgrade
APP Restart
Scheduled Restart
Default Access/Password : 192.168.110.1 Password: admin
Local Upgrade
Online Upgrade
Backup
Factory Reset
|
|
Software Features
|
|
System
|
System Log
Diagnostics
Network Check
|
|
Physical
|
|
Status LED
|
One LED (Blue)
|
|
Buttons
|
1×Reset button
|
|
Dimensions (W x D x H)
|
258 mm × 258 mm × 59.5mm (10.16 in. x 10.16 in. x 2.20 in., without the mounting bracket)
|
|
Weight
|
≤ 2.0 kg (4.41 lbs., without the mounting bracket)
|
|
DC Port Dimensions
|
Outer Diameter: 5.5 mm
Inner Diameter: 2.1 mm
Length: 10 mm
|
|

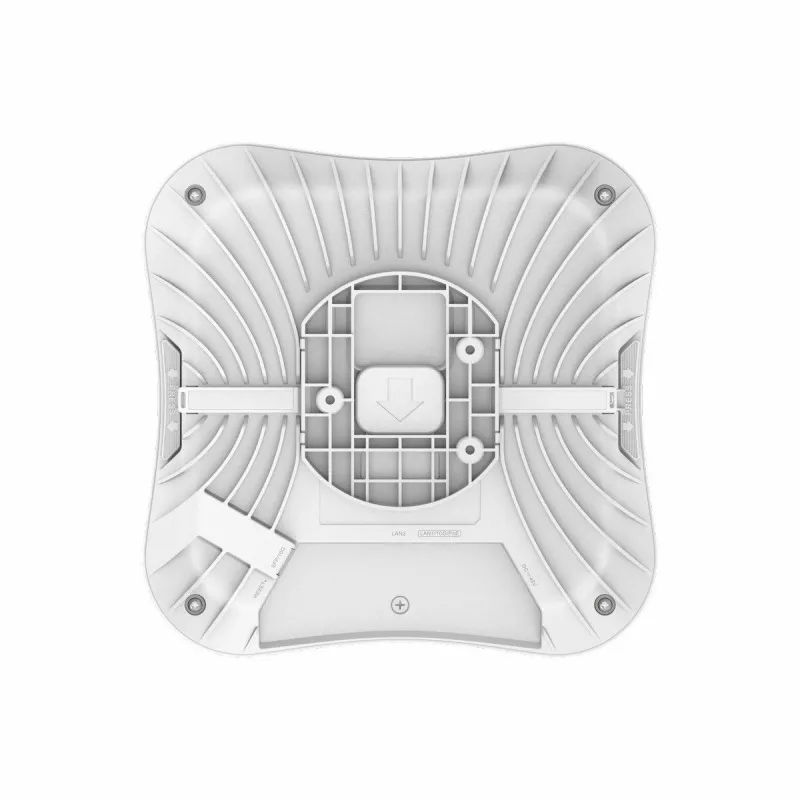

Installation
|
Ceiling-Mountable
|
|
Power Supplies
|
IEEE 802.3af/at/bt PoE
DC 48V/1.25A
|
|
Max. Power Consumption
|
60 W
|
|
PoE Power Budget
|
60W
|
|
Environmental
|
|
Temperature
|
Working temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
|
|
Operating Humidity
|
Working humidity: 5% RH to 95% RH (non-condensing)
|
|
Storage Humidity
|
Storage humidity: 5% RH to 95% RH (non-condensing)
|
|
IP(Ingress Protection
|
IP41
|
|
Port Surge
|
Common mode:2 kV
differential mode: 1kV
|
|
MTBF
|
>400000H
|
|
ประกัน
|
3 ปี
|
