ACTi ENR-1000 Desktop Standalone NVR 4-Ch. 2-Bay Record 4 x 1080p/30fps, HDMI, Remote Access, Video Export, Plug & Play with Built-in DHCP Server, Disks not included
ACTi NVR ENR-1000 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera
ACTi Live! Demo เข้ามาชมวามคมชัด และความสามารถในการบันทึกภาพในสภาวะแสง หลากหลายรุ่น
ใช้ Internet Explorer พิมพ์ URL มาที่
http://nvkvpn0.dyndns.org
UserName: guest / Password: guest123

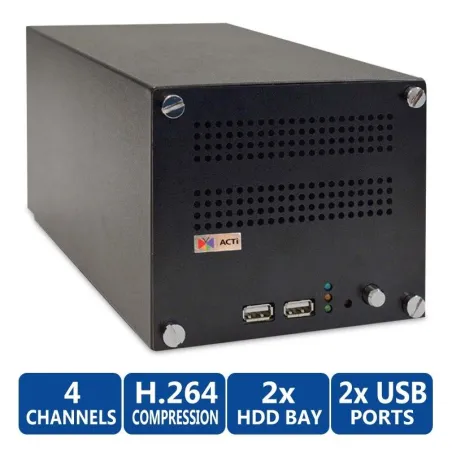

ACTi ENR-1000 Network Video Recorder (NVR) 4CH. 2Bay รองรับ 1080p x 4CH
|
Maximum Number of Clients |
2 |
|
Maximum Number of Cameras |
4 |
|
Compression |
H.264 |
|
Maximum Display Resolution |
1920 x 1080 |
|
Display Layout Mode |
1, 4 |
|
Layout Tour |
Automatic switch between different display layouts |
|
Event logging |
Display status for network/record/motion upon every video region |
|
Control |
Pan, tilt and zoom controls; speed control |
|
Preset Points and Tours |
Go/set preset points |
|
Number of Preset Points |
32 |
|
Default Protocol |
URL command |
|
Scheduled Recording |
Record video with user defined schedule |
|
Event Recording |
Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip |
|
Manual Recording |
Instant recording upon mouse click |
|
Recording Frame Rate |
Max 120 fps total; Max 30 fps per camera |
|
Maximum Recording Throughput |
16 Mbps |
|
Video Search |
Time Based Video Search: Search video recordings by time, channel or bookmark |
|
Playback Control |
Forward and backward playback with speeds 1/2x-1x-32x; pause; stop |
|
Synchronized Playback |
4 channels |
|
Snapshot |
Create snapshot from playback for export |
|
Cropping/Enlarging |
Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins) |
|
Video Export |
Export video clips in AVI/RAW format via USB storage |
|
Event Trigger |
Video motion detection; External device through digital input; Video loss and recovery; Network loss and recovery |
|
Event Response |
Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Event logging; Go to PTZ preset point; Pop-up instant playback |
|
Firmware Upgrade |
FW Upgrade via USB mass storage |
|
Backup / Restore |
Configuration backup/restore via USB mass storage |
|
Permission Control |
Multi-group/users, live view/playback/setup/remote level permission |
|
Data Backup |
USB mass storage |
|
Operating System |
Embedded Linux |
|
System Status Monitor |
Real time status reports on remote browser |
|
Language |
English |
|
PC Web Browser |
Microsoft Internet Explorer 8.0 or 9.0 |
|
Ports |
2x USB 2.0 |
|
Approvals |
CE, FCC |
|
Power Source |
DC 12V/ 50W |
|
Environmental Requirements |
Temperature (Operating): 0~ 40°C / 32 ~ 104°F |
|
Dimensions (W x H x D) |
5.3 x 4.8 x 9.5" / 135 x 121 x 241 mm |
|
Weight |
2.93 lb / 1.33kg |
สินค้ารับประกัน 2 ปี
Standalone NVR Product Introduction
ENR-1000 ENR-1100 ENR-1200 ENR-2000 v4.01.07 Product presentation
ACTi Standalone NVR Overview
