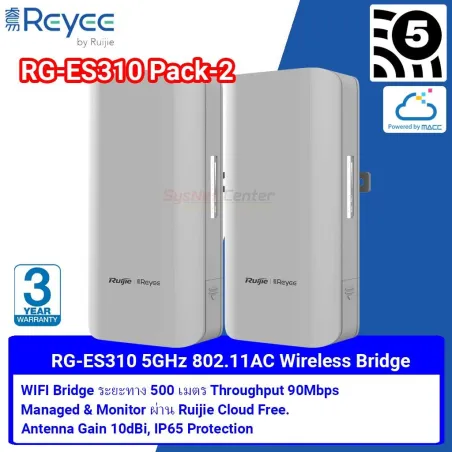

Ruijie Reyee RG-EST310 Wireless Bridge (Pack คู่) 5GHz มาตรฐาน ac 867Mbps, Antenna 10dBi 60 องศา, IP65 สำหรับเชื่อมเครือข่ายระยะไกล Point To Point โดยไม่ต้องเดินสาย Cable
Ruijie Reyee RG-EST310 Datasheet
Ruijie Reyee Implement Cookbook
Product Specification | |
Overview | Ruijie Reyee RG-EST310 Wireless Bridge 5GHz มาตรฐาน ac ความเร็ว 867Mbps, Antenna Gain 10dBi 60 องศา สำหรับเชื่อมเครือข่ายระยะไกล Point To Point โดยไม่ต้องเดินสาย Cable , Managed ผ่าน Ruijie Cloud ** ระยะทางไม่เกิน 1Km ในพื้นที่โล่ง (LOS) ** มาพร้อม Passive POE 24VDC |
Chip | QCA9531, QCA9886 |
RAM/ Flash | 64MB/8MB |
Radio | Dual-stream single-band 2×2 |
Operating Band | 802.11a/n/ac:5.725~5.850GHz |
Antenna | Built-in directional antennas, horizontal: 60°, vertical: 30°, gain: 10dBi |
Spatial Streams | 2 |
Maximum Throughput | Up to 867Mbps at 5GHz |
Transmit Power | ≤250mW |
Dimensions | 147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver, H: height of the device excluding the mounting kits) |
Weight | 0.35kg |

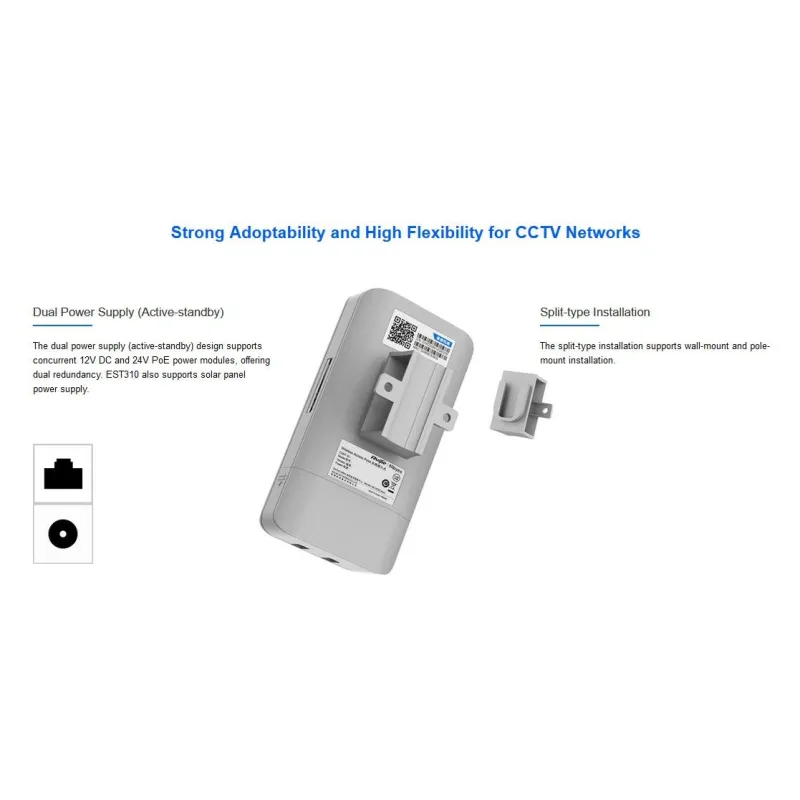

Ports | 1 10/100Base-T Ethernet port, supports 24VDC non-standard PoE 1 DC port, supports 12VDC power supply |
Hardware Button | 1 reset button |
Status Indicators | System indicator: 1 Port indicator: 1 Bridge signal strength indicators: 3 |
Power Supply | Support 12VDC power supply and 24VDC non-standard PoE (Passive POE 24VDC มาพร้อมในชุด) |
Power Consumption | <5W |
Environment | Operating temperature: -30°C~50°C |
Storage temperature: -40°C~70°C | |
Operating humidity: 5% to 95% (non-condensing) | |
Storage humidity: 5% to 95% (non-condensing) | |

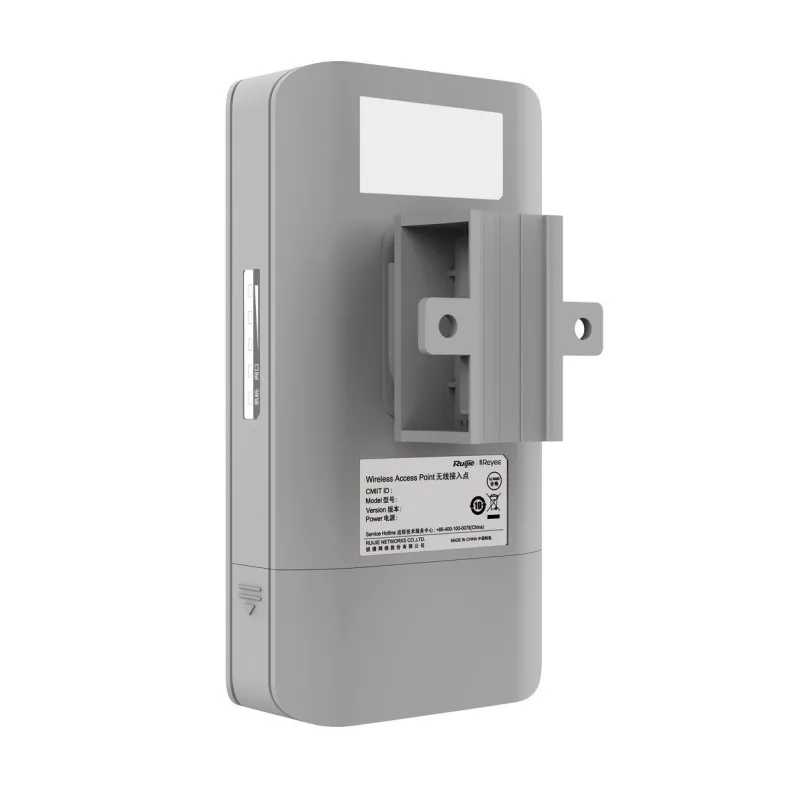

Installation | Wall-mounted/ Pole-mounted (straps provided) |
IP Rating | IP65 |
Lightning Protection | 4KV |
Radio Standard | SRRC certification |

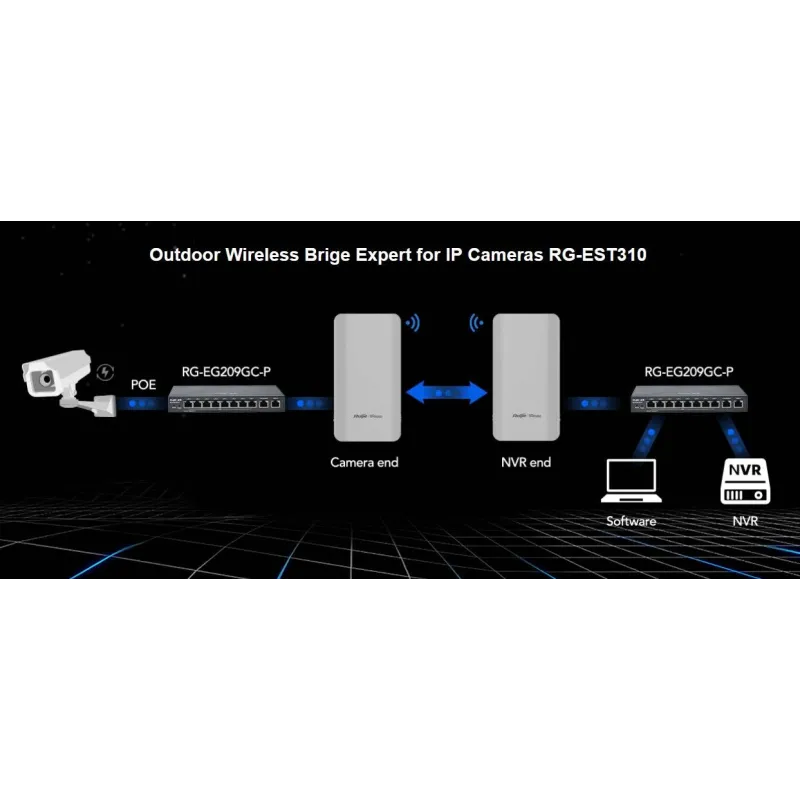

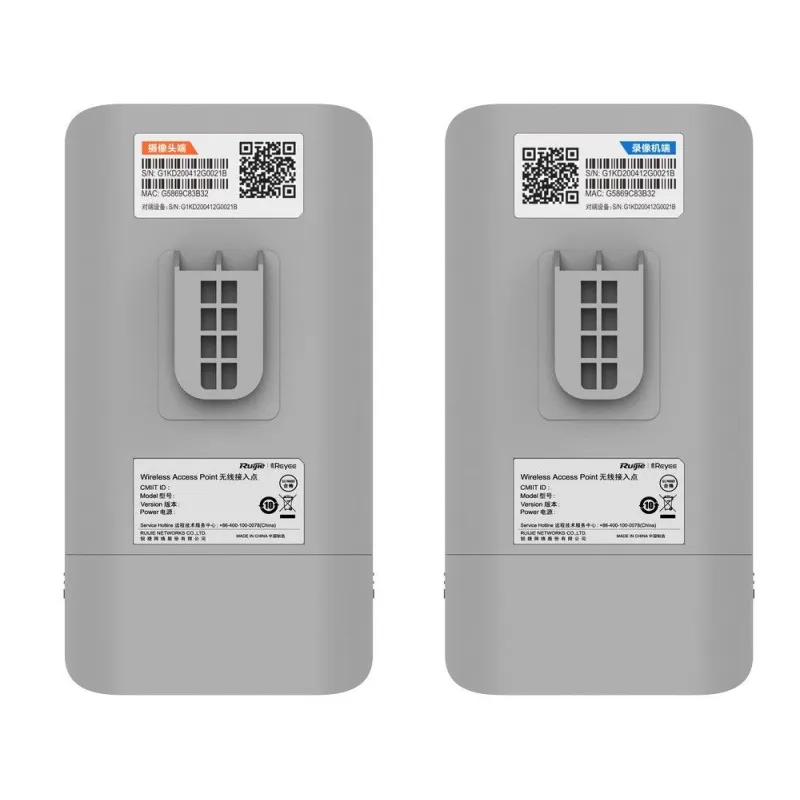

Automatic Bridging | Support The recorder-end and camera-end are automatically paired for bridging by default |

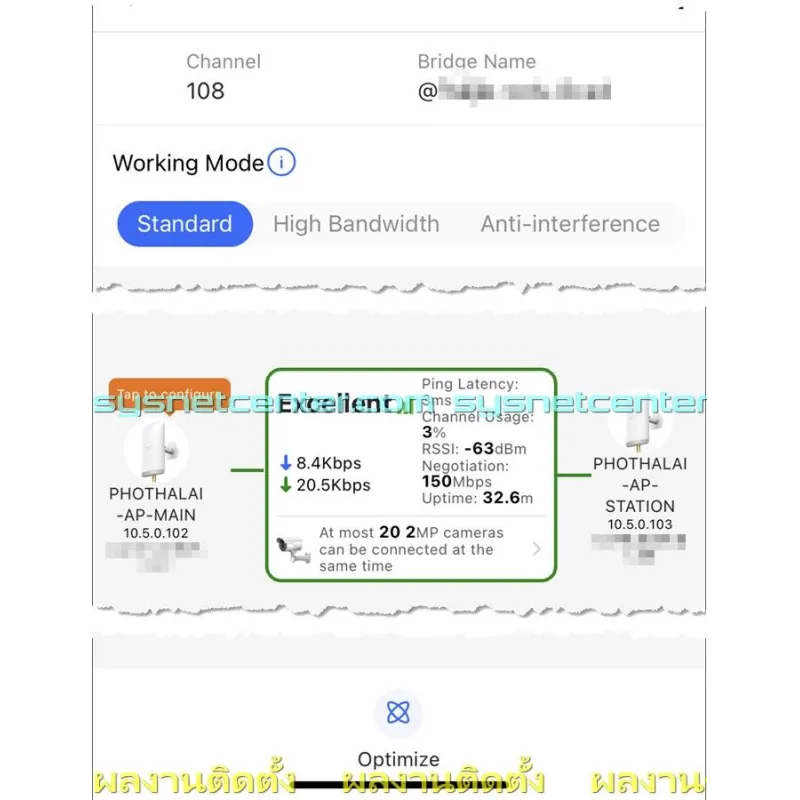

Device Configuration and Management | Support App/Web configuration |
QR Code Login | Users can log in to the device configuration interface by scanning the QR code of the device using the app |
Self-healing | Automatic restart upon equipment failure |
Automatic Channel Adjustment | Automatically adjust the channel upon power-on |
รับประกัน | 3 ปี |
Model | Antenna angle | Distance (m) | Signal strength ( dbm ) | Negotiation speed ( Mbps ) | Throughput ( Mbps ) | 3M camera ( 200w | H.265) | 4-5M camera ( 300w | H.265) | 6-7M camera ( 300w | H.265) |
---|---|---|---|---|---|---|---|---|
RG-EST310 | Horizonta 60° Vertical30° Gain10dbi | 100 500 1000 2000 | -52 -65 -68 -75 | 400 400 240 120 | 90 90 80 40 | 16 16 16 6 | 10 10 10 4 | 7 7 7 3 |
