เหมาะกับงานที่ต้องการเชื่อมต่อเครือข่าย (Point To Point) ในงานที่ไม่สะดวกเดินสาย Lan เช่น ติดตั้งกล้อง IP Camera ที่ป้อม รปภ. และต้องการส่งข้อมูลกล้องกลับมาบันทึกลง NVR ในสำนักงาน หรือ งานเชื่อมต่อเครือข่ายระหว่างอาคาร
แต่ข้อจำกัดในการใช้อุปกรณ์ Wireless Bridge คือ จุดที่ติดตั้งตัวต้นทาง ส่งสัญญาณไปยังตัวปลายทาง ต้องไม่มีสิ่งกีดขวางบังสัญญาณที่ส่งออกไป
อุปกรณ์ Wireless Bridge RG-EST310 ในชุดมี 2 ตัวครับ เพื่อติดตั้งทั้ง 2 ฝั่ง ใช้มาตรฐาน WIFI 802.11ac แต่ ใช้ Port Lan ความเร็วสูง 1Gbps เหมาะกับงานเชื่อมต่อเครือข่ายระหว่างอาคาร ที่ต้องการความเร็วสูง Bandwidth ที่ได้ก็จะได้สูงสุดคือ 400Mbps
อัตราขยายของเสา 15dBi มีมุมองศาของสัญญาณประมาณ 31 องศา เพื่อให้ส่งสัญญาณได้ไกล การติดตั้งจะยากกว่ารุ่น EST310 ต้องหันหรือก้มเงยอุปกรณ์ให้ตรงกันเป๊ะๆ ส่งสัญญาณได้ระยะสูงสุด 5กม. แต่ยิ่งระยะไกล ความเร็วที่ได้ก็จะลดลงครับ แนะนำใช้ที่ระยะไม่ควรเกิน 3กม.
Product Specification | |
Model | RG-EST350 |
Hardware Specifications | |
Chip | QCA9563+QCA9886 |
RAM/ Flash | 512 MB/8 MB |
Radio | Dual-stream single-band 2×2 |
Operating Band | 802.11a/n/ac: 5.150~5.350GHz, 5.470~5.725GHz , 5.725~5.850GHz (country specific) |
Antenna | Directional antennas, horizontal: 31°, vertical: 14°, gain: 15 dBi |
Bridging Distance | 5 km (recommended) |
Spatial Streams | Two streams |
Maximum Throughput | Up to 867 Mbps at 5 GHz |
Transmit Power | ≤100 Mw(20 dBm) (adjustable) |
Dimensions | 230 mm(D)×132 mm(W)×48 mm(H) (Dimensions per device) |
Weight | 0.6 kg |

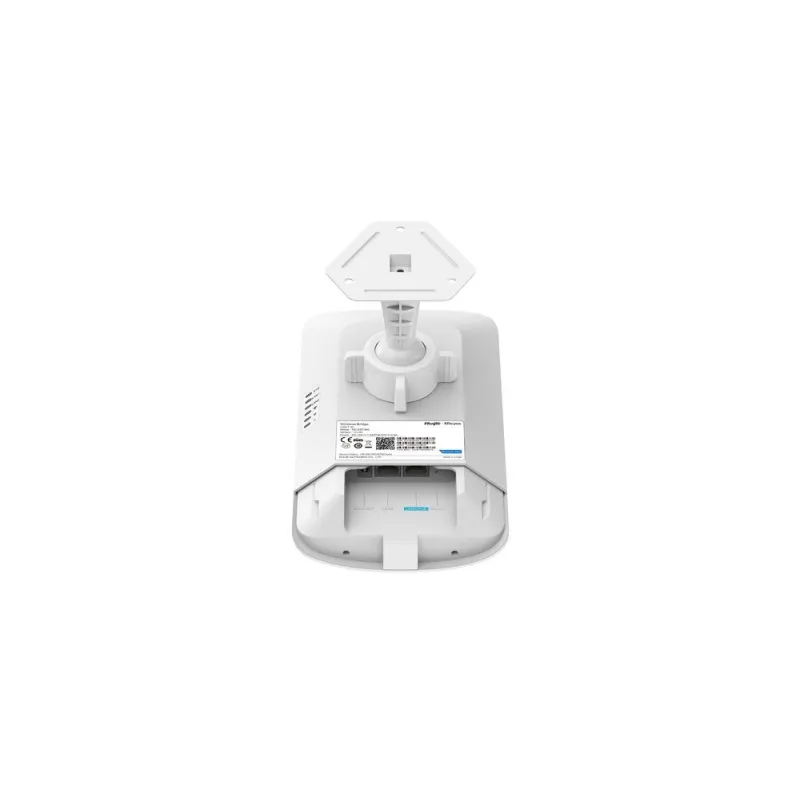

Ports | Two 10/100/1000Base-T Ethernet ports, supports 24 VDC non-standard PoE power supply |
Hardware Button | 1 reset button |
Status Indicators | System indicator: 1 |
Power Supply | Support 12 VDC power supply and 24 VDC non-standard PoE power supply |
Power Consumption | <9 W |
Environment | Operating temperature: -30°C to 65°C |
Storage temperature: -40°C to 85°C | |
Operating humidity: 5% to 95% (non-condensing) | |
Storage humidity: 5% to 95% (non-condensing) | |

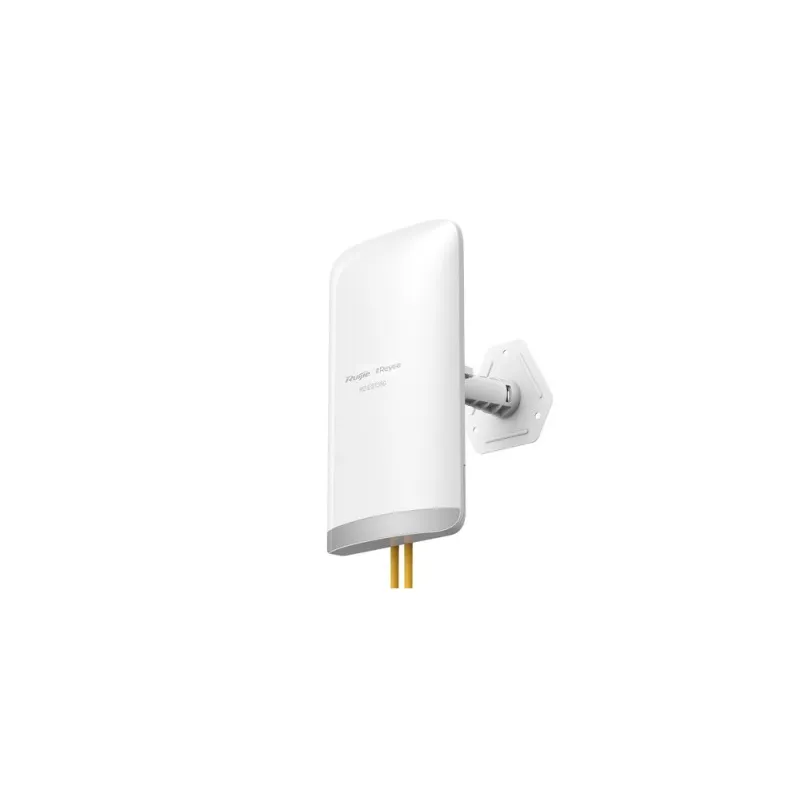

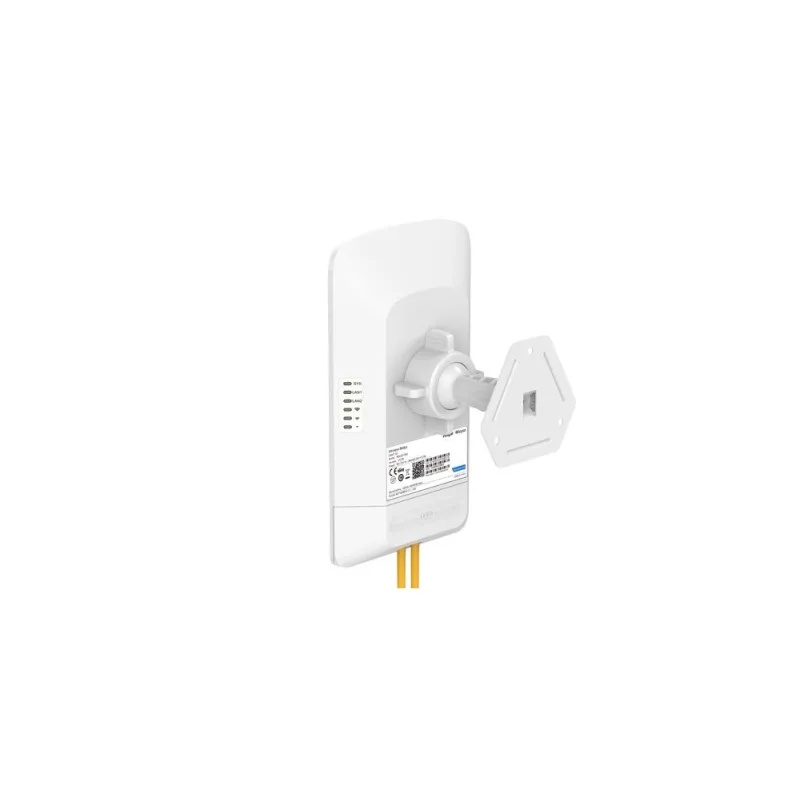

Installation | Wall-mounted/ Pole-mounted (hose clamp is provided) |
IP Rating | IP65 |
Lightning Protection | 4 KV |
Radio Standard | EN300 328, EN301 893 |
Software Features | |
Automatic Bridging | Support |
One-to-many Bridging | One-to-three bridging is recommended for the wireless coverage scope at an angle of 31° to the horizontal. |
Device Configuration and Management | Support App/Web configuration |
QR Code Login | Users can log in to the device configuration interface by scanning the QR code of the device using the app |
Self-healing | Automatic restart upon equipment failure |
Automatic Channel Adjustment | Automatically adjust the channel upon po |
รับประกัน | 3 ปี |
