Product Spec |

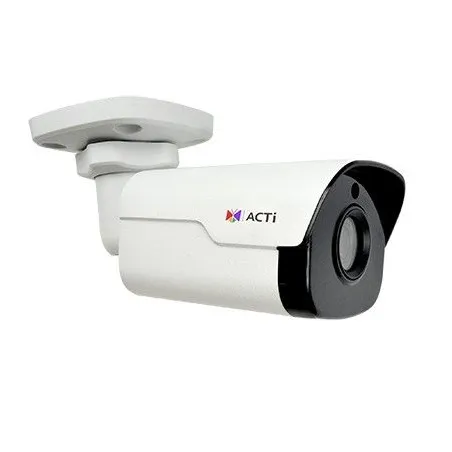

ACTi Z31 Mini Bullet IP-Camera Fixed Lens แบบติดตั้งภายนอกอาคาร ความละเอียด 4MP Mode Day/Night Adaptive IR Extreme WDR, Superior Low Light Sensitivity รองรับ POE 802.3af |
|
Product Type |
Mini Bullet |
|
Maximum Resolution |
4MP |
|
Application Environment |
Outdoor |
|
Image Sensor |
Progressive Scan CMOS |
|
Sensor Size |
1/3 " |
|
Effective Pixels |
2688(H) X 1520(V) (4.09 MP) |
|
Day / Night |
Yes |
|
Low Light Sensitivity |
Superior |
|
Minimum Illumination |
Color: 0.02 lux; B/W: 0 lux (IR LED on) |
|
Mechanical IR Cut Filter |
Yes |
|
IR LED |
Adaptive IR LED |
|
IR Working Distance |
30m |
|
Electronic Shutter |
1/6-1/100000sec (manual mode); 1/6-1/100000sec (auto mode) |
|
S/N Ratio |
55 dB |
|
Lens |
|
|
Focal Length |
Fixed focal, f3.6mm |
|
Aperture |
F1.8 |
|
Iris |
Fixed iris |
|
Focus |
Fixed focus |
|
Lens Mount |
Board mount |
|
Horizontal Viewing Angle |
76.8? |
|
Video |
|
|
Compression |
H.265, H.264, MJPEG |
|
Maximum Frame Rate vs. Resolution |
20 fps at 2592 x 1520 |
|
Multi-Streaming |
Simultaneous triple streams based on three configurations |
|
Wide Dynamic Range |
Extreme WDR (120 dB) |
|
Image Enhancement |
Digital Image Stabilizer, Defogging |
|
Digital Noise Reduction |
2D + 3D DNR |
|
Privacy Mask |
4 configurable regions |
|
Text Overlay |
Yes |
|
Built-in Analytics |
Object Based Motion Detection, Tamper |
|
Image Orientation |
Flip, Mirror, Rotation |
|
Audio |
|
|
Network |
|
|
Ethernet Port |
1 x RJ-45 connector |
|
Event |
|
|
Event Trigger |
Video motion detection, Sound detection, Tampering detection |
|
Event Response |
E-mail notification with snapshots, Upload snapshot to FTP server |
|
Integration |
|
|
ONVIF Compliant |
Yes, Profile S |
|
Interface |
|
|
General |
|
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
|
Power Consumption |
6.4 W (PoE) |
|
Weight |
450g (0.99lb) |
|
Dimensions |
(W x H x D): 63mm x 62.4mm x 157.3mm (2.5" x 2.5" x 6.2") |
|
Environmental Casing |
Weatherproof (IP66) |
|
Bundled Accessories |
Integrated bracket |
|
Mount Type |
Wall Mount, Ceiling Bracket |
|
Operating Temperature |
-35?C ~ 60?C (-31?F ~ 140?F) |
|
Approvals |
CE, FCC, IP66 |
|
Warranty |
3 Year(s) |
|
|
|
