Acti ZNR-120P Datasheet
ZNR Series User Manual
|
Product Spec |

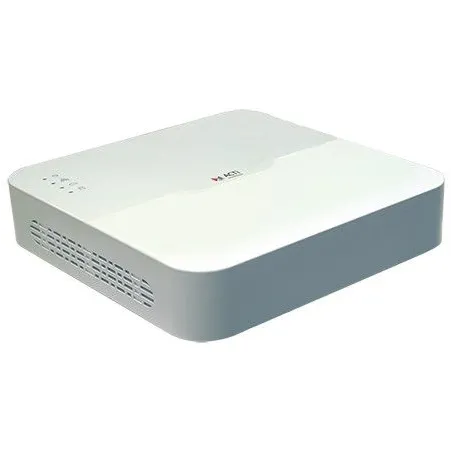

ACTi ZNR-120P Network Video Recorder Standalone NVR 4-Channel 30 fps at 3840 x 2160, รองรับ HDD 1-Bay สูงสุด 6TB (HDD Not Include), พร้อม 4 Port POE เพื่อเชื่อมต่อกับกล้อง ACTi Z-Series ได้โดยตรง |
|
Device |
|
|
Product Type |
Standalone NVR |
|
Maximum Resolution |
8MP |
|
Maximum Number of Video devices |
4 |
|
Maximum Number of Clients |
Local: 1, Remote: 2 |
|
Hardware |
|
|
CPU |
Hi3536 |
|
License |
|
|
License required |
No |
|
Free License |
4 |
|
Live View |
|
|
Display Layout Mode |
1,4 |
|
Digital Zoom |
Yes |
|
Event Status |
Display event status upon alarm or upon connection loss or recovery between server and client |
|
Instant playback |
Instant Playback in live view window |
|
PTZ |
|
|
PTZ Control |
PTZ Control, Speed Control |
|
Video |
|
|
Compression |
H.265, H.264 |
|
Maximum Frame Rate vs. Resolution |
30 fps at 3840 x 2160 |
|
Audio |
|
|
Audio Type |
2-way, Line-in, Line-out |
|
Network |
|
|
Ethernet Port |
Total ports: 5 port(s) |
|
Recording |
|
|
Scheduled Recording |
Yes |
|
Event Recording |
Yes |
|
Manual Recording |
Yes |
|
Maximum Recording Throughput |
40 Mbps |
|
Search & Playback |
|
|
Playback Control |
Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop |
|
Synchronized Playback |
4 channels |
|
Video Export |
MP4 |
|
System |
|
|
Client PC Operating System |
Windows 8, Windows 7 |
|
Server Operating System |
Embedded Linux |
|
USB |
2 port(s), USB 2.0 |
|
Integration |
|
|
ONVIF Compliant |
Yes |
|
Web Browser |
IE 10 or newer, Firefox, Chrome, Opera |
|
Storage |
|
|
HDD Bay |
SATA, Max. 1 Disk(s) |
|
HDD Maximum Capacity |
6TB x1 |
|
RAID Level |
No |
|
Interface |
|
|
Local Access |
HDMI/VGA monitor, USB keyboard & mouse |
|
General |
|
|
PoE Output |
Maximum 30 Watts per port |
|
PoE Power Budget |
Maximum 54 W |
|
Power Source |
DC 48V |
|
Power Consumption |
8 W (DC) |
|
Weight |
590g (1.3lb) |
|
Dimensions |
(W x H x D): 42mm x 205mm x 205mm (1.7" x 8.1" x 8.1") |
|
Operating Temperature |
-10?C ~ 55?C (14?F ~ 131?F) |
|
Operating Humidity |
10% - 90% RH |
|
Remote Access |
Web Client |
|
Approvals |
CE, FCC |
|
Warranty |
3 Year(s) |
|
|
|
