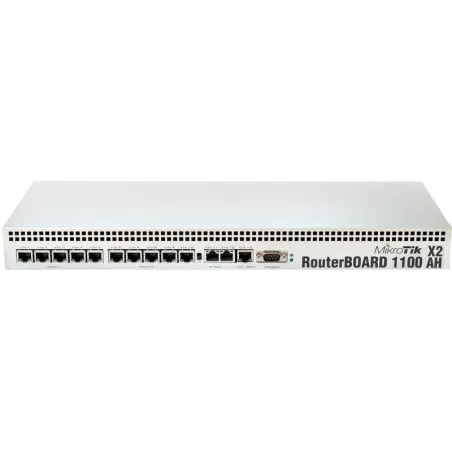

MikroTik RB1100AHx2 Router Board CPU Dual Core 1066MHz, 13 Port Gigabit, Ram 2GB, RouterOS Level6 ทำระบบ Hotspot Authenticate ได้ 150 ทำ Bandwidth Management, L7 Firewall
Product Specification | |
Overview | อุปกรณ์ Mikrotik Router Board รุ่น RB1100AHx2 ทำระบบ Firewall, Bandwidth Management, Web Proxy, Wireless AP, Wireless Client and Bridge, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, Hotspot Gateway (Unlimit User), Radius Client, Unlimited Queues, User Manager (Unlimit Active Session), Synchronous Interface, Core Router |
ทำระบบ Hotspot Authenticate ได้ประมาณ 150 Users พร้อมกัน | |
CPU | Dual Core P2020 network processor ความเร็ว 1066MHz |
Memory | SODIMM DDR Slot, 2GB ติดตั้งภายใน |
Operating System | MikroTik RouterOS PPC v4, License Level6 |
Hotspot Account | รองรับได้ไม่จำกัดจำนวน Account (UnLimit) |
Data storage | Onboard NAND memory chip |
Ethernet | Port RJ-45 จำนวน 13 Port ความเร็ว 10/100/1000 Mbps. |
miniPCI | n/a |
Serial port | 1 Port RS232 (DB9) |
Memory Cards | 1 MicroSD Slot |
Power options | 8V - 28V DC - power jack, 18V -28VDC passive PoE (Ethernet port 13) |
Dimensions | 1U case: 45 x 75 x 440 mm |
Weight | 1,200g |
Operating Temperature | -20C ถึง +50C |
รับประกัน | 1 ปี |
Support |
เนื่องจากอุปกรณ์ Mikrotik สามารถที่จะ Config ได้หลากหลายรูปแบบ ในบางปัญหา ทางร้านจะไม่สามารถหาวิธีแก้ไขให้ได้ รวมถึง RouterOS ที่มีการ Update อยู่บ่อยครั้ง ทางร้านขอสงวนสิทธิ์ในการบริการหลังการขายและ Support ตามนี้ครับ
อุปกรณ์ Mikrotik Router (CRS1xx, CRS2xx, RB9xx, hEX, RB4xx, RB2011, RB7xx, hAPxxx, CCRxxx, RB3xxx, RB600, RB8xxx, RB11xx, RB12xx, CRS3xxxx, RB3011)
Config ระบบ Hotspot Authenticate , ค่าเบื้องต้นในการเชื่อมต่อ Internet , Hotspot Server, NAT Firewall, IP Address, DHCP Client/Server, Bridge Interface, PPPoE Client, User-Manager, Radius, NTP, Backup Config
ในกรณีที่ทำระบบ Hotspot และ ทางลูกค้าต้องการติดตั้ง SSL Certificate ทางร้านจะมีไฟล์ SSL ส่งให้ และทางลูกค้าทำการติดตั้งเอง ตามในหัวข้อนี้ครับ วิธีติดตั้ง SSL Certificate บน Mikrotik โดยจะมีอายุ 1 ปี (ปกติทางร้านจะต่อทุกปีครับ แต่พอครบปี ไฟล์เดิมจะใช้ไม่ได้ ลูกค้าต้องทำการ Import File เข้าไปใหม่)
กรณีที่ลูกค้าต้องการใช้ Mikrotik สำหรับทำ Loadbalance แล้วทำระบบ Hotspot ,ทำ VLAN แยก SSID แต่ละชื่อ WIFI , Forward Port เพื่อเชื่อมต่อจากภายนอกมายังอุปกรณ์ภายในระบบ Network ทางร้านขออนุญาติคิดค่าใช้จ่ายเพิ่มเติมตามด้านล่างนี้ครับ
