Product Specification
|
|
Overview
|

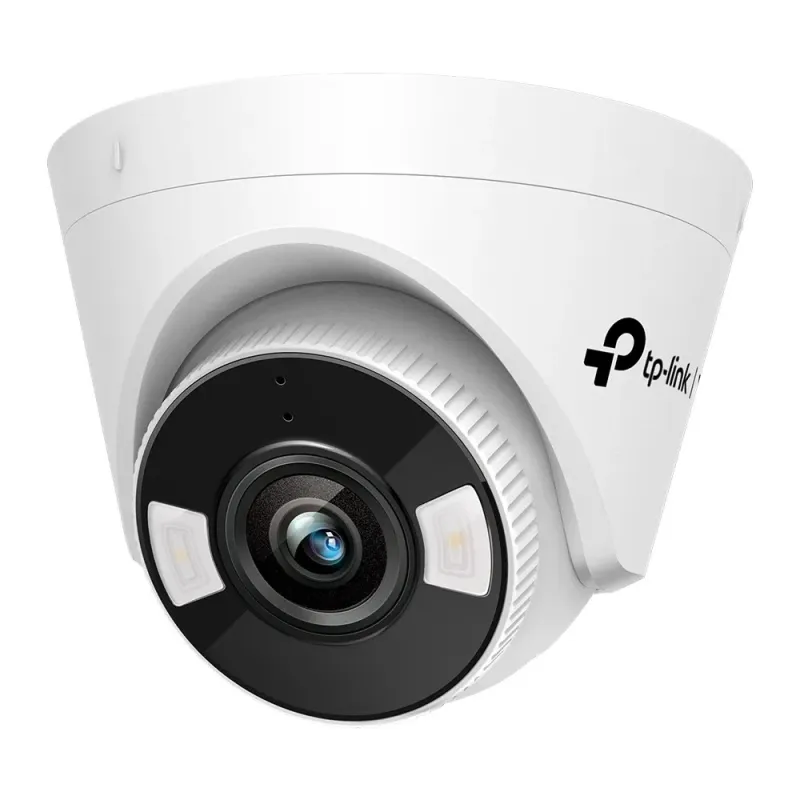

TP-Link VIGI C440 กล้อง IP-Camera แบบ Turret ความละเอียด 4MP ติดตั้งภายในอาคาร บันทึก Video มาตรฐาน H.265+
เลนส์ให้เลือกขนาด 2.8/4mm
รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE
|
|
NETWORK
|
|
Security
|
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
|
|
Protocol
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
|
|
API
|
ONVIF
|
|
Simultaneous Live View
|
4 Main Streams & 3 Sub-Streams,
or 3 Main Streams & 5 Sub-Streams
|
|
GENERAL
|
|
Package Contents
|
VIGI Network Camera
Quick Start Guide
Screws and Anchors
Mounting Template
|
|
Certifications
|
CE, FCC, RCM, BSMI, VCCI, RoHS
|
|
Dimensions( H X W X D )
|
123 × 123 × 84 mm
|
|
Material
|
Plastic
|
|
Weight
|
195 g
|
|
General Features
|
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
|
|
Power Requirements
|
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
|
|
CAMERA
|
|
Image Sensor
|
1/3” Progressive Scan CMOS
|
|
Lens
|
4 mm
|
|
Aperture
|
2.8 mm: F1.6
4 mm: F1.6
|
|
Lens Mount
|
M12
|
|
Viewing Angle
|
(2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122°
(4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
|
|
Day/Night Mechanism
|
IR Cut Filter
|
|
IR Working Distance
|
30m
|
|
Minimum Illumination
|
Color: 0.04 Lux@F1.6; 0 Lux with IR
|
|
Pan/Tilt Range
|
Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
|
|
Digital Noise Reduction
|
3D DNR
|
|
WDR
|
DWDR
|
|
VIDEO/IMAGE
|
|

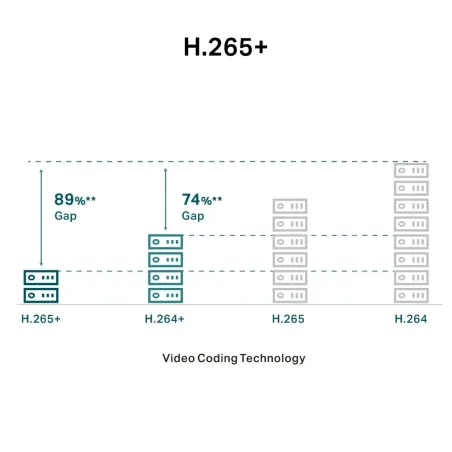

Video Compression
|
Main stream: H.265/H.264
Sub-Stream: H.265/H.264
|
|
Frame Rate & Resolutions
|
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
|
|
Image Settings
|
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
|
|
Image Enhancement
|
BLC/3D DNR/Prevent Overexposure to Infrared Light
|
|
Video Bit Rate
|
64 Kbps to 6 Mbps
|
|
SMART FEATURE-SET
|
|
Smart Event
|
Area Intrusion Detection, Line-Crossing Detection
|
|
Basic Event
|
Motion Detection, Video Tampering Detection, Exception ( illegal login)
|
|
Linkage Method
|
Trigger Notification: ONVIF, HTTPS
|
|
Region of Interest
|
1 Region
|
|
INTERFACES
|
|
Network Interface
|
1 RJ45 10/100M Self-Adaptive Ethernet Port
|
|
Audio Input
|
Built-in Microphone
|
|
Audio Output
|
Built-in Speaker
|
|
Button
|
-
|
|
Slot
|
Micro SD card Up to 256GB (Not Include Micro SD-Card
|
|
รับประกัน
|
3 ปี
|
