Product Specification
|
|
Overview
|

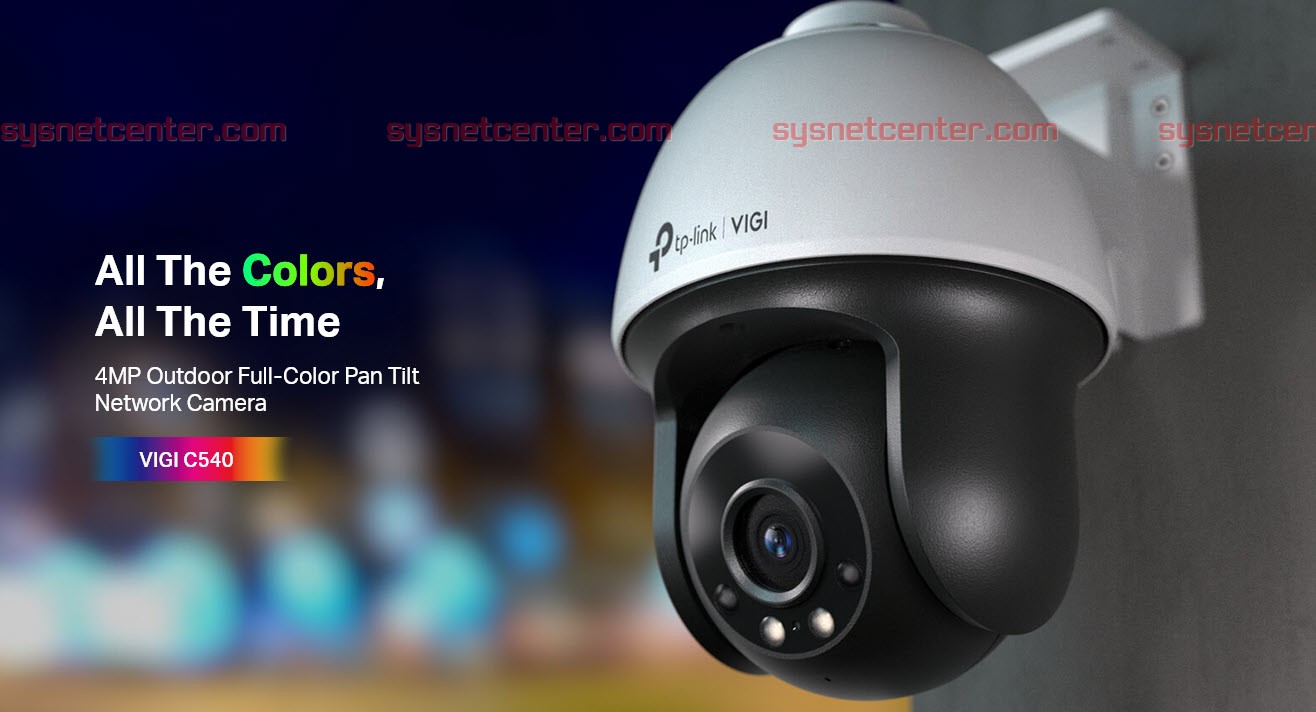

TP-Link VIGI C540 กล้อง IP-Camera แบบ Bullet ความละเอียด 4MP ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+
เลนส์ขนาด 4mm.

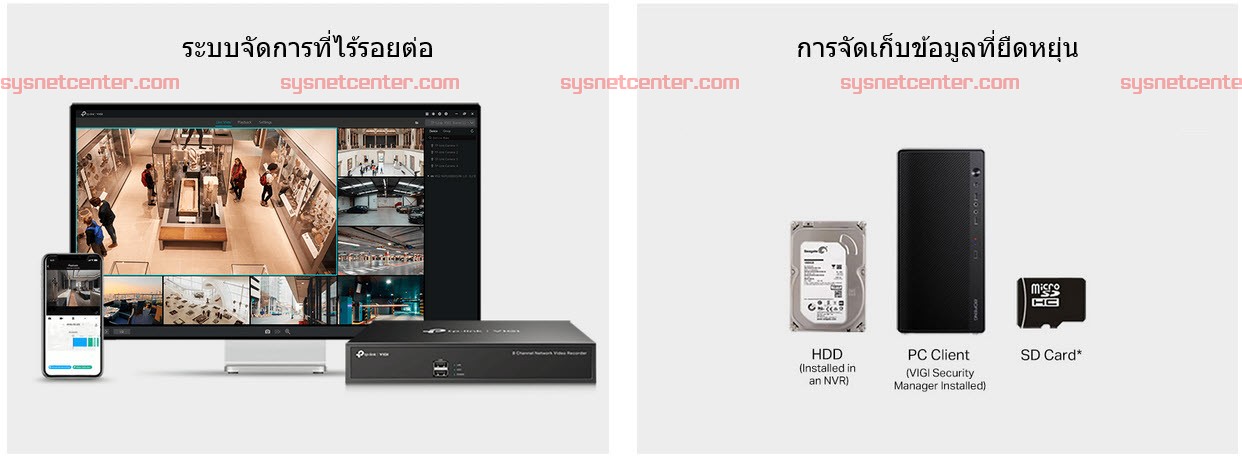

รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE/12VDC
|
|
NETWORK
|
|
Security
|
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
|
|
Protocol
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
|
|
API
|
ONVIF
|
|
Simultaneous Live View
|
3 Main Streams & 3 Sub-Streams
|
|
GENERAL
|
|
Package Contents
|
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories (Screws, Drywall Anchors, Hex Key)
|
|
Operating Temperature
|
-30–60 °C
|
|
Certifications
|
CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
|
|
Dimensions( H X W X D )
|
78 × 70 × 174 mm
|
|
Material
|
Plastic
|
|
Weight
|
195g
|
|
General Features
|
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
|
|
Power Requirements
|
12V DC ± 5%, 5.5mm Coaxial Power Plug

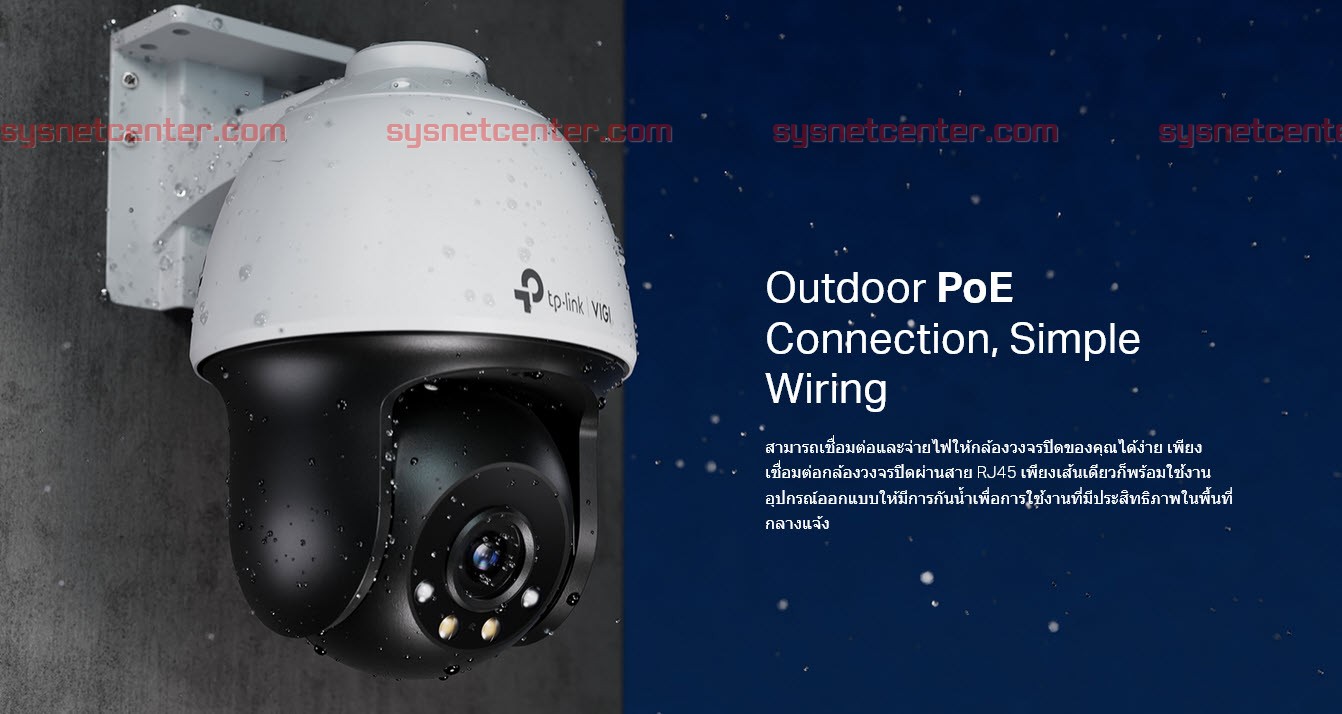

PoE (802.3af/at, class 0)
|
|
CAMERA
|
|
Image Sensor
|
1/3” Progressive Scan CMOS
|
|
Lens
|
Fixed focal lens (4 mm.)
|
|
Aperture
|
4 mm: F1.6
|
|
Lens Mount
|
M12
|
|
Viewing Angle
|
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
|
|
Day/Night Mechanism
|
IR Cut Filter
|
|
IR Working Distance
|
30m
|
|
Illumination Distance
|
30 m
|
|
Minimum Illumination
|
0 lux with IR/white Light
|
|
Weatherproof Rating
|
IP66
|
|

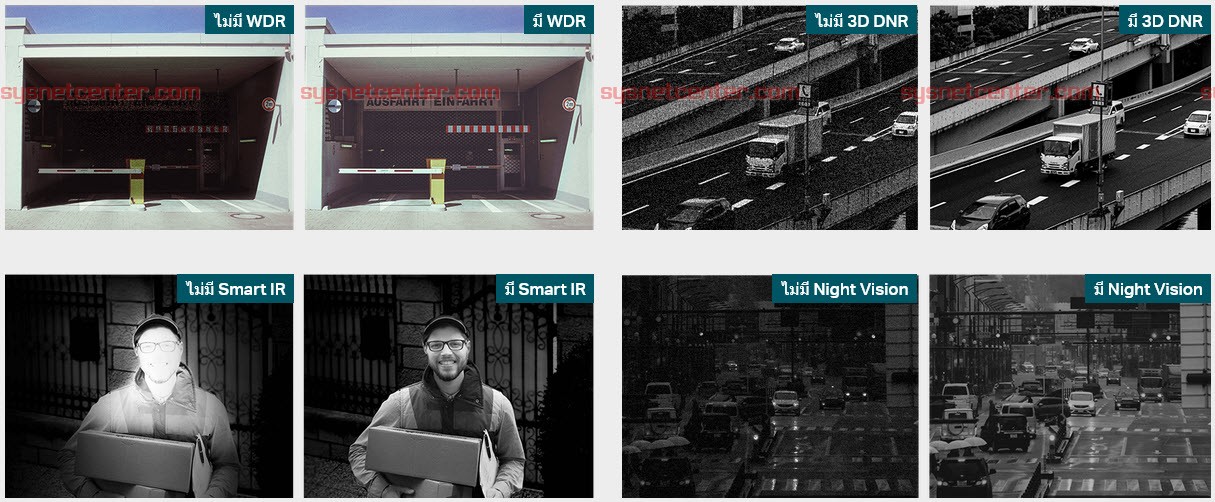

Digital Noise Reduction
|
3D DNR
|
|
WDR
|
DWDR
|
|
VIDEO/IMAGE
|
|
Video Compression
|

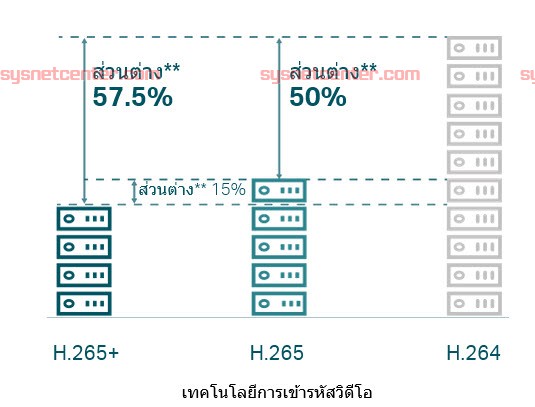

Main stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264
|
|
Frame Rate & Resolutions
|
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
|
|
Video Streaming
|
Main Stream
Sub-Stream
|
|
Image Settings
|
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
|
|
Image Enhancement
|
BLC/3D DNR/Prevent Overexposure to Infrared Light
|
|
Video Bit Rate
|
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
|
|
SMART FEATURE-SET
|
|
Smart Event
|
Area Intrusion Detection, Line-Crossing Detection, Human Detection
|
|
Basic Event
|
Motion Detection, Camera Tampering Detection, Exception ( illegal login)
|
|
Linkage Method
|
Trigger Notification: ONVIF, HTTPS
|
|
Region of Interest
|
1 Region
|
|
INTERFACES
|
|
Network Interface
|
1 RJ45 10/100M Self-Adaptive Ethernet Port
|
|
Audio Input
|
Built-in Microphone
|
|
Audio Output
|
Built-in Speaker
|
|
Button
|
Reset Button
|
|
Slot
|
Micro SD card Up to 256GB (Not Include Micro SD-Card
|
|
รับประกัน
|
3 ปี
|
