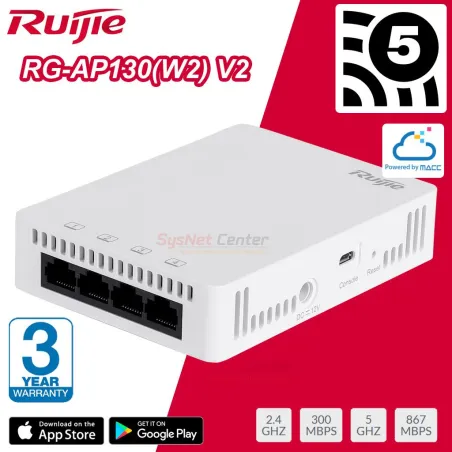

Ruijie Networks Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control
    • Ruijie Networks Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control
    • Ruijie Networks Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control
    • Ruijie Networks Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control
    • Ruijie Networks Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control
    • Ruijie Networks Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control

    Ruijie RG-AP130(W2) V2 Wall Access Point AC Wave 2, 1.167Gbps, 4 Port Gigabit, Cloud Control

    Ruijie Networks
    Rating

    Ruijie RG-AP130(W2) V2 Wall-Mountable Wireless AP AC Dual-Band 2x2 MU-MIMO ความเร็วสูงสุด 1.167Gbps, 4 Port Lan Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control

    ฿4,950.00
    ยังไม่ได้รวมภาษี
    จำนวน


    ทักทาง Line@ สอบถามราคาลดพิเศษได้เลยครับ


    Line: @sysnet

    Click โทรสอบถามข้อมูลเพิ่มเติม
    รายละเอียด

    Review ระบบ Controller Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

    Free! โปรแกรมออกคูปอง Voucher ใช้งาน Internet ทั้ง Windows และ Android

    Ruijie RG-AP130(W2) V2 Datasheet
    Ruijie RG-WLAN Series Access Points RGOS Configuration Guide
    Ruijie RG-WLAN Series Access Points Web-based Configuration Guide

    Ruijie RG-WLAN Series Access Points RGOS Command Reference

    Tolly Test Report - Ruijie Cloud and Wireless Performance Evaluation

    Product Specification

    Overview

    Ruijie RG-AP710 Wireless Access Point มาตรฐาน AC 2x2 MU-MIMO Dual-Band กระจาย 2 ย่านความถี่ ความเร็วสูงสุด 1.167Gps

    1 Port Lan Gigabit รองรับ POE มาตรฐาน 802.3af

    รองรับการทำ Authenticate แบบ Captive Portal, Social Login

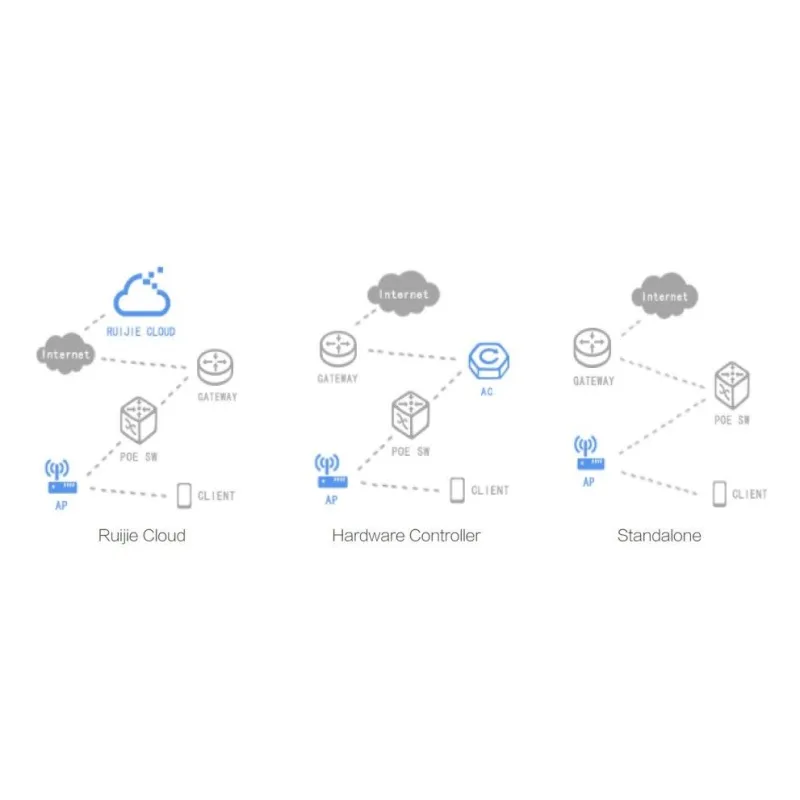

    Manage และ Monitor ผ่าน Cloud, Standalone และ Hardware Control

    พร้อม Ruijie Cloud License แบบ Lifetime

    Type

    Wall-mounting

    Radio

    Concurrent dual-band dual-radio

    Protocol

    802.11a/b/g/n
    802.11ac Wave 1
    802.11ac Wave 2

    Operating Bands

    2.4GHz and 5GHz

    Antenna

    Built-in omnidirectional antenna
    2x2 MU-MIMO

    Max Throughput

    1,167Mbps

    Spatial Streams

    2 x 2

    Modulation

    11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
    11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
    11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
    11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

    Maximum Transmit Power

    ≤100mW (20dBm, transmit power of the RF card only)

    IP Rating

    IP41

    Ports

    Front:
    4 10/100/1000M Ethernet ports
    Side:
    1 RJ-45 port  (RJ-11 combo)
    Rear:
    1 10/100/1000M uplink port
    1 RJ-45 pass-through port (RJ-11 combo)

    Management Port

    1 console port (Micro USB)

    Lock

    Standard: Anti-theft screws and ordinary screws
    Optional: Lock and key

    Color Plate Cover Options

    White, black, silver and gold

    LED Indicators

    1 LED status indicator

    Maximum clients per AP

    Up to 32

    BSSID capacity

    Up to 8 per radio
    Up to 16 per AP

    SSID hiding

    Support

    Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

    Support

    Remote Intelligent Perception Technology (RIPT)

    Support

    Intelligent identification of smart device

    Support

    Intelligent load balancing based on the number of users or traffic

    Support

    STA control

    SSID/radio-based

    Bandwidth control

    STA/SSID/AP-based speed control

    PSK, Web, 802.1x authentication

    Support

    Data encryption

    WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

    QR code authentication

    Support

    SMS authentication

    Support

    PEAP authentication

    Support

    Data frame filtering

    Whitelist, static/dynamic blacklist

    User isolation

    Support

    Rogue AP detection and countermeasure

    Support

    Dynamic ACL assignment

    Support

    RADIUS

    Support

    CPU Protection Policy (CPP)

    Support

    Network Foundation Protection Policy (NFPP)

    Support

    Wireless Intrusion Detection System(WIDS)

    Support

    Wireless Intrusion Prevention System (WIPS)

    Support

    Remote probe

    Support

    IPv4 address

    Static IP address or DHCP reservation

    IPv6 address

    Manual or automatic configuration

    Multicast

    Multicast to unicast conversion

    Wireless position tracking

    Support

    Network management

    SNMP v1/qav2C/v3, Telnet, TFTP, Web management

    Visualized wireless heat map analysis

    Support

    Real-time spectrum analysis

    Support

    Fault detection and alarm

    Support

    Statistics and logs

    Support

    FAT/FIT switching

    The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
    The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.

    Safety Standard

    GB4943
    EN/IEC 60950-1

    Dimensions (W x D x H) (mm)

    116 × 86 × 42

    Weight

    0.23kg

    Installation Mode

    Standard 86-type faceplate installation

    Power Supply

    Not Include

    PoE (802.3af), Local DC power supply

    Power Consumption

    <8W

    Temperature

    Operating Temperature:
    -10°C to 45°C
    Storage Temperature:
    -40°C to 70°C

    Humidity

    Operating Humidity:
    5% to 95% (non-condensing)
    Storage Temperature:
    5% to 95% (non-condensing)

    ประกัน

    3 ปี



    High-performance 802.11ac Wall AP

    The Ruijie RG-AP130(W2) Wall AP adopts a dual-radio, dual-band design and supports concurrent operation of 802.11a/n/ac and 802.11b/g/n. The Wall AP provides 4 1000Mbps or 100Mbps RJ-45 ports and 1 RJ-45 transparent Voice/PoE pass-through port (RJ-11 combo). The AP on the rear also offers 1 1000Mbps uplink port and 1 RJ-45 transparent pass-through port (RJ-11 combo). The dual-band 2.4G and 5G coverage can achieve a concurrent coverage supporting 2 spatial streams, providing an unparalleled network experience.

    MU-MIMO Support

    The wall-mountable RG-AP130(W2) supports the MU-MIMO feature. Most single-stream end devices only utilize half of the resources of the dual-stream RG-AP130(W2) Wall AP with the other half left unused. The wasted AP resources will stagnate the enhancement of user experience. With the MU-MIMO feature, RG-AP130 (W2) makes full use of the AP resources and is capable to serve two end devices concurrently, improving the user experience.

    Simplified Deployment

    The RG-AP130(W2) Wall AP adopts a wall-mounted design with 2-step easy deployment:

    Step 1: Remove the original 86-type faceplate from the wall.

    Step 2: Directly install the plug-and-play Wall AP and connect with original UTP cable (PoE).

    This breaks through traditional wireless network construction methods by reusing existing network cables and minimizes the impact of network construction in hotel or similar settings. As no additional cabling is required, the Wall AP delivers maximum business agility and investment protection. Ruijie also offers a wide range of optional accessories to meet your unique deployment needs.

    Stylish Casing in Different Colors

    The RG-AP130(W2) Wall AP offers a collection of colorful covers to accommodate various interior design styles. You can select the best fit from gold, white, black and silver.

    Full Signal Coverage

    Traditional APs are installed in corridors and the indoor network signals are weak or even completely degenerated after wall penetration. The RG-AP130(W2) Wall AP, on the other hand, can be installed inside the room and hence ensures full coverage anywhere for the best user experience of voice, video or Internet browsing.

    Unified Management of FAT and FIT Modes

    The RG-AP130(W2) Wall AP supports both FAT and FIT AP modes, which can be flexibly selected as desired. The Wall AP allows easy upgrade of WLAN to a large-scale network, fully protecting users’ investment costs. In the hotel scenario, the deployment involves a large number of guest rooms and so is the amount of APs. AP management of such a large scale is what current hospitality solutions struggle to guarantee. The RG-AP130(W2) Wall AP offers a simple and easy solution to lessen administrator workload. Teaming up with Ruijie’s Wireless Access Controllers series, the solution enables centralized AP management and fast troubleshooting. Comparing with traditional SOHO APs, the RG-AP130(W2) Wall AP greatly facilitates O&M personnel to manage the whole wireless network.

    Smart Identification of End Devices

    The RG-AP130(W2) supports smart identification of end devices, which is capable to identify Apple, Android, PC and other smart mobile end devices.

    Comprehensive Security Protection

    Industry-leading Double Security Designs

    The RG-AP130(W2) Wall AP is manufactured using qualified ABS+PC materials, offering superior shock, pressure and temperature resistance for secure deployment. The specially designed screw protects the AP from malicious damage or theft. The Wall AP and color case also guard against theft with a unique security key. The administrator can manage all the APs using one security key with ease.

    User Access Control

    The RG-AP130(W2) Wall AP supports a broad library of user authentication methods such as Web, 802.1x, MAC address, and local authentication for customers’ choice. It also supports Ruijie’s end-to-end BYOD (Bring Your Own Device) Solution, complies with a standard access control system, and strictly defines access control policies in terms of user access, authorization, host compliance check, network behavior monitoring, and network threat defense. All these control measures ensure that users are authenticated before accessing a network and securely enjoy network services.

    Full Security Protection

    Teaming up with Ruijie’s integrated network management system RG-SNC (Smart Network Commander) and RG-WS Wireless Access Controller Series, the Wall AP delivers outstanding security features including Wireless Intrusion Detection System (WIDS), RF interference location, rogue AP countermeasures, anti-ARP spoofing, and DHCP.

    Multiple Easy-to-use Authentication Modes

    As the key components of Ruijie’s intelligent cloud-based RG-MACC platform, the RG-AP130 Series offers secure and optimal network connections that are required in various scenarios. The RG-AP130 Series supports convenient and high-efficiency Protected Extensible Authentication Protocol (PEAP), web portal authentication, SMS authentication, and voucher (QR code) authentication .

    Voucher (QR code) authentication is another wireless security highlight, enabled by Ruijie’s RG-MACC-SAM platform, which generates one-time or pay-per-use vouchers in recurring or one-time format with time-based policies, streamlining and simplifying the generation and management of QR code or voucher.

    รายละเอียดสินค้า
    50 รายการ

    Data sheet

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว Wireless
    WIFI-5 (802.11ac: 650Mbps+)
    ย่านความถี่
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Hardware Controller, Cloud Controller
    รองรับ POE
    Yes

    ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

    Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

    Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

    Ruijie Cloud: Perfect Network Solution For SME

    Ruijie Cloud Site Survey Planner (SSP) Overview

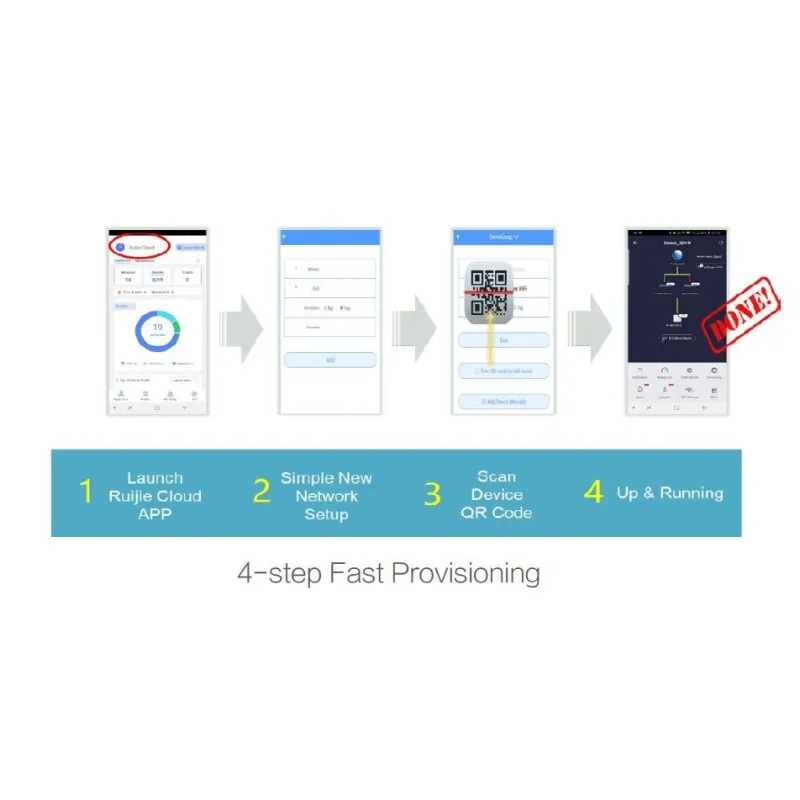

    Ruijie AP Quick Provisioning

    Ruijie Cloud Deployment Quick Start

    ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie vs Reyee

    Feature

    Ruijie Enterprise

    Reyee

    Ruijie Cloud

    Support

    Support

    Mobile App

    Support

    Support

    Presales Tools

    Support

    Support

    Fast Provisioning

    QR-code Device Scan/ Cloud Config Sync

    Self-organizing network (SON)

    Monitoring & Alarm

    Support

    Support

    Device Management

    Additional:
    RRM, Web CLI, Configuration Mgmt (Backup/Restore)

    Basic

    Gateway Management

    Additional:
    L7 DPI Analysis
    WAN Load Balancing
    App Cache

    Basic

    Multi-tenant

    Support

    Support

    Scenario-based

    Config Wizard

    N/A

    Support (App)

    WLAN

    Standard

    Wi-Fi4 /5 /5 Wave2 / 6

    Wi-Fi 5 Wave2 , 6 (Roadmap)

    Capacity

    Max Client 1024 (Wi-Fi 6)

    Max Client 128

    WLAN Auth

    802.1x Auth
    CustomizedPortal
    PPSK, Voucher, Account, Facebook, SMS OTP

    PSK/WPA2
    BasicPortal (Reyee Gateway)

    WLAN Features

    Adv CLI script configuration
    WIDS(Rogue AP detection)
    WirelessRadio Analytics (RRM)
    Location tracking (LBS)
    Bluetooth (BLE) support
    Speed Limit Per Client
    Speed Limit Per SSID

    Basic

    WLAN Controller

    (Appliances)

    Yes
    RG-WS6000 Series (upto 6400 AP)

    Yes
    RG-NBC Series (up to 500 AP)

    Switches

    Capacity

    Chassis model option (upto 48 10GE)

    Box Switches model (upto 24GE +10G uplink)

    L2

    IGMP Snooping, MSTP, LACP VLAN, Link Aggregate, SuperVlan, VoiceVlan, ACL

    VLAN
    Link Aggregate
    ACL

    L3

    IPv6, RIP, OSPF, PBR, VRRP

    N/A

    Security / Availability

    802.1x, CPP/NFPP, REUP, VSU

    N/A

    Management

    Managed with Web & CLI (Console port), SSH, SNMP

    Web Smart Managed & Unmanaged
