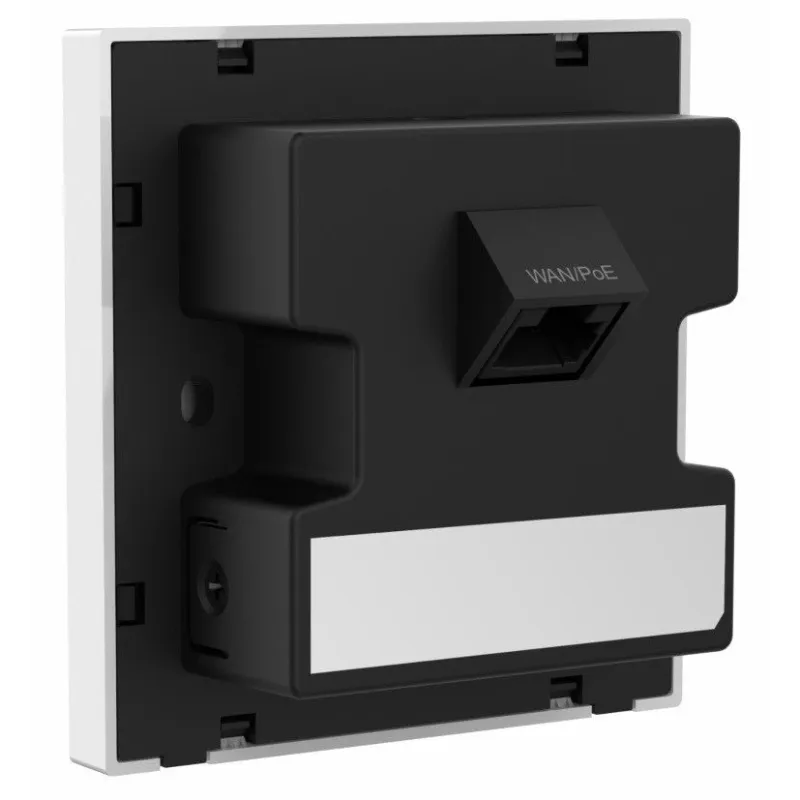

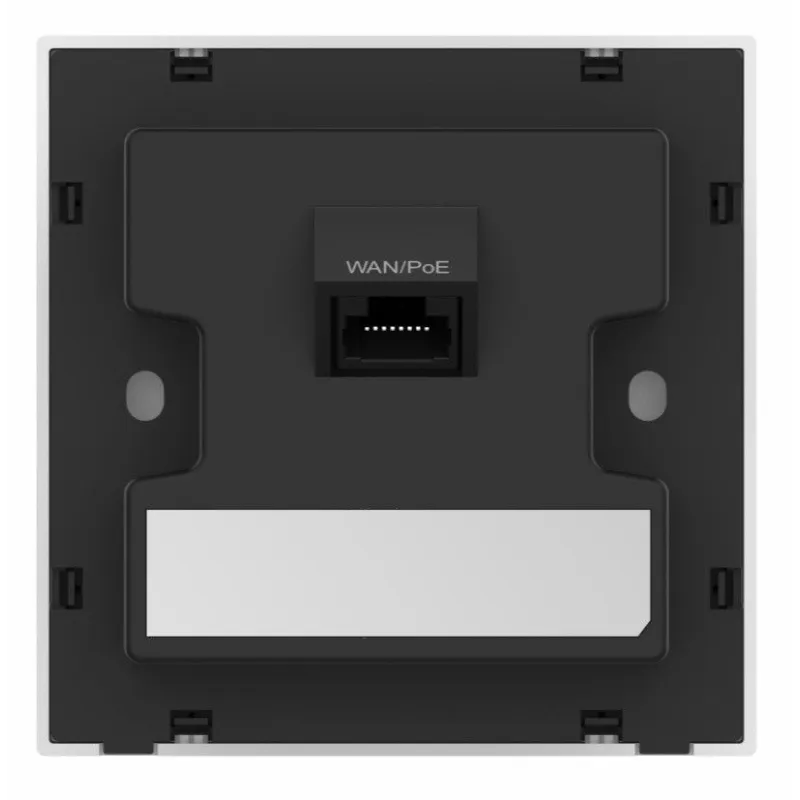

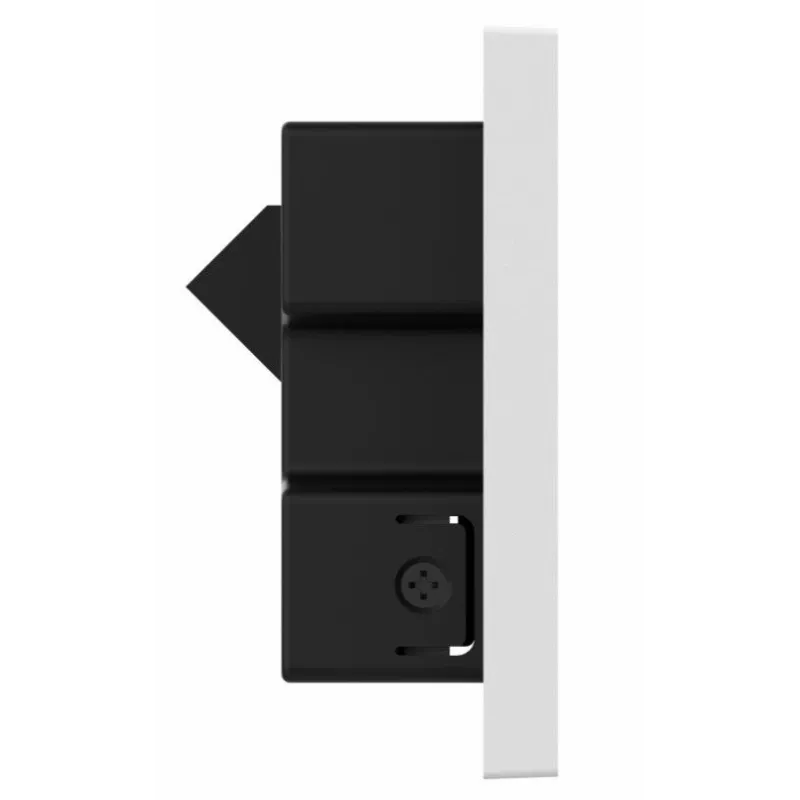

Overview | Reyee RG-RAP1261 Dual-Band Gigabit Ultra-Thin Wall Plate Access Poin มาตรฐาน WIFI6 AX3000 2 Port Lan Gigabit รองรับการ Managed แบบ Stanalone, Free Cloud Control, Hardware Control |
Hardware specifications | |
Wi-Fi Standards | 802.11a/n/ac/ax |
MIMO | 2.4 GHz, 2x2, MU-MIMO |
Max. Data Rate | 2.4 GHz: 574 Mbps |
Number of Antennas | 5 |
Antenna Type | Built-in omnidirectional antennas |
Antenna Gain | 2.4 GHz: 1.6 dBi; |
Transmit Power | 2.4 GHz: 20 dBm |
Fixed Ports | 1 x 10/100/1000Base-T Ethernet uplink port |
Max. Number of Concurrent STAs | 512 |
Recommended Number of Concurrent STAs | 110 |
Max. Number of SSIDs | 8 |
Supported Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz |
Software Features | |
Power Adjustment | Support |
Channel Bandwidth | 2.4 GHz: Auto/20 MHz/40 MHz |
Roaming | Layer 2 roaming |
OFDMA | Support |
Beamforming | Support |
Wi-Fi Multimedia (WMM)) | Support |
Radar Signal Detection and Frequency Hopping (DFS) | Support |
WLAN Security | |
Security Mode | WAP-PSK, WAP2-PSK, and WPA-WAP2-PSK |
Blocklist and Allowlist | Support |
Enhanced User Experience | |
Wi-Fi Optimization | Support |
Removing Low-RSSI STAs | Support |
Syslog Recording Why Users Lose Connection | Support |
Auto Channel and Power Adjustment on Cloud | Support |
RSSI Threshold for STA Access | Support |
Load Balancing | Support |
Networks | |
Network Access Mode | PPPoE Client |
Avoidance of WAN IP Address Conflicts | Support |
VLAN | Port-based VLAN |
DHCP Server | Support |
System | |
Management | Cloud Management |
App Upgrade | Support |
App Restart | Support |
Scheduled Restart | Support |
Default Access/Password | 10.44.77.253 (No password required by default.) |
Upgrade | Local Upgrade |
Backup | Support |
Factory Reset | Support |
Diagnostics | Support |
Network Check | Support |
Hardware Features | |
LED | 1 x System status LED |
Reset Hole | 1 x Reset hole |
Dimensions (W x D x H) | 86 mm x 86 mm x 42.4 mm (3.39 in. x 3.39 in. x 1.67 in.) |
Weight | 0.16 kg (without the mounting bracket) |
Power Supply | IEEE 802.3af/at PoE |
Max. Power Consumption | 10.2 W |
Environment | |
Operating Temperature | 0°C to 40°C (32°F to 104°F ) |
Storage Temperature | –40°C to +70°C (–40°F to +158°F ) |
Ingress Protection Rating (IP Rating) | IP41 |
MTBF | 400,000 hours |
รับประกัน | 3 ปี |
New upgrade to AX3000, Speed Test reaches 950Mbps, delivering the fastest possible internet experience.
Thinner, Cooler, Stronger. Averagely reduced 7°C in working mode
No matter dynamic or even private IP on gateway WAN port, Securely monitoring the NVR/IPC/Internal Server anytime from anywhere.
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
Model | ||||||
สัญญาณครอบคลุม | 20 เมตร | 20 เมตร | 30 เมตร | 30 เมตร | 30 เมตร | 30 เมตร |
จำนวน Clients ที่แนะนำ | 40 | 80 | 48 | 80 | 100 | 100 |
มาตรฐาน WIFI | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11ac wave2 | 802.11ac wave2, wave1 | 802.11ax | 802.11ax |
ความเร็วสูงสุด (2.4GHz) | 400Mbps | 400Mbps | 400Mbps | 400Mbps | 574Mbps | 800Mbps |
ความเร็วสูงสุด (5GHz) | 867Mbps | 867Mbps | 867Mbps | 867Mbps | 1201Mbps | 2402Mbps |
กำลังส่งสูงสุด (2.4G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
กำลังส่งสูงสุด (5G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
จำนวน SSID | 8 | 8 | 8 | 8 | 8 | 8 |
Spatial Streams | 2.4G: 2x2 MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 4x4 MIMO |
Antenna | PCB antenna | PF antenna | Array antennas 2.4G: 2dBi | Array antennas | Internal antennas 2.4G: 3dBi | Internal antennas 2.4G: 3dBi |
Service Ports | Front: Rear: | Front: Rear: | 2 Port 10/100 Mbps PoE/LAN1 port supports PoE | 2 Port 10/100/1000 Mbps | 2 Port 10/100/1000 Mbps | 1 Port 10/100/1000M/2.5G supports PoE; 1 Port 10/100/1000Mbps |
SON Number | 150 | 150 | 150 | 300 | 300 | 300 |
Power Supply | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1at | PoE 803.1at |
Port Aggregation | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
VLAN | Support | Support | Support | Support | Support | Support |
Port Base VLAN | Support | Support | Not Support | Not Support | Not Support | Not Support |
DHCP Snooping | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
ARP Check | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
IP Source Guard | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
LLDP | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Static ARP Bind | Support | Support | Support | Support | Support | Support |
ARP Proxy | Support | Support | Support | Support | Support | Support |
Ping | Support | Support | Support | Support | Support | Support |
Traceroute | Support | Support | Support | Support | Support | Support |
NAT | Support | Support | Support | Support | Support | Support |
Static Route | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
DHCP Server | Support | Support | Support | Support | Support | Support |
Telnet | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
SSH | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
รองรับการจัดการผ่าน Ruijie Cloud | Support | Support | Support | Support | Support | Support |
รองรับการจัดการผ่าน Ruijie Cloud APP | Support | Support | Support | Support | Support | Support |
802.1x | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PPPoE | Support | Support | Support | Support | Support | Support |
Same SSID with differnet VLAN | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Same VLAN with differnet SSID | Support | Support | Support | Support | Support | Support |
L2 Roaming | Support | Support | Support | Support | Support | Support |
L3 Roaming | Support | Support | Support | Support | Support | Support |
Global whitelist/blacklist | Support | Support | Support | Support | Support | Support |
SSID-based whitelist/blacklist | Support | Support | Support | Support | Support | Support |
Wireless bridge | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PoE Out | Not Support | Support | Not Support | Not Support | Not Support | Not Support |
